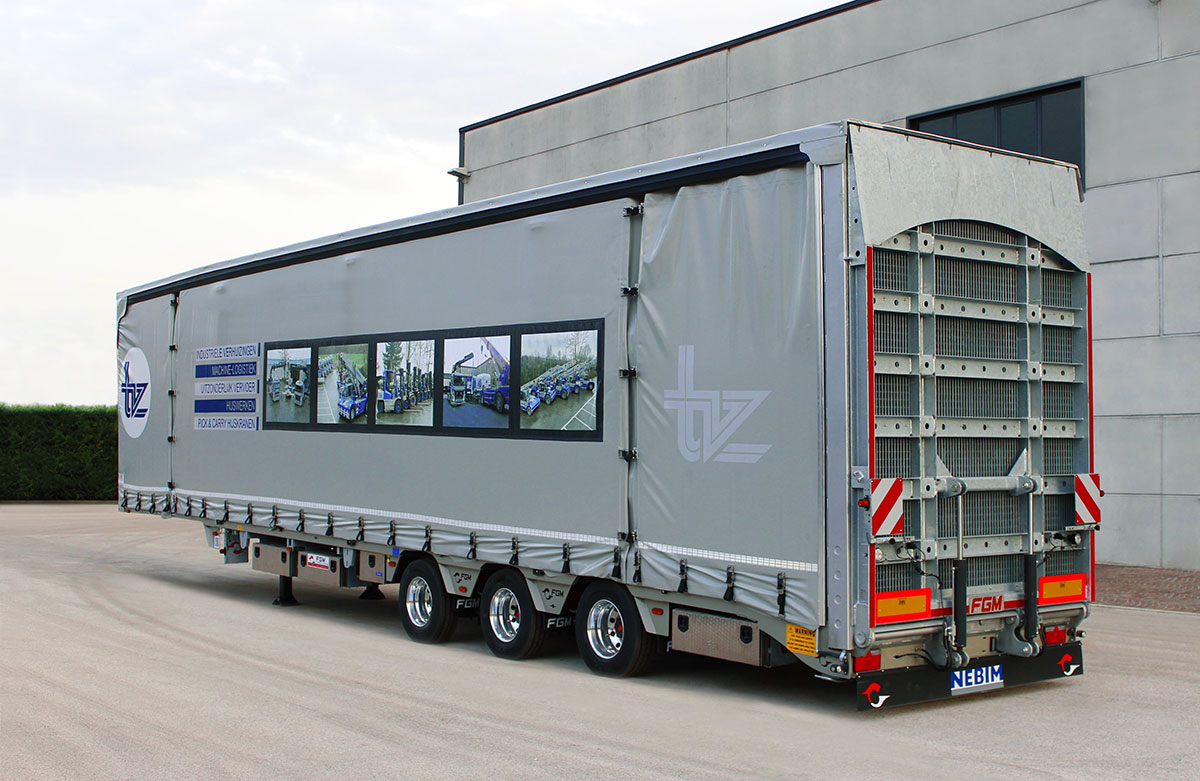

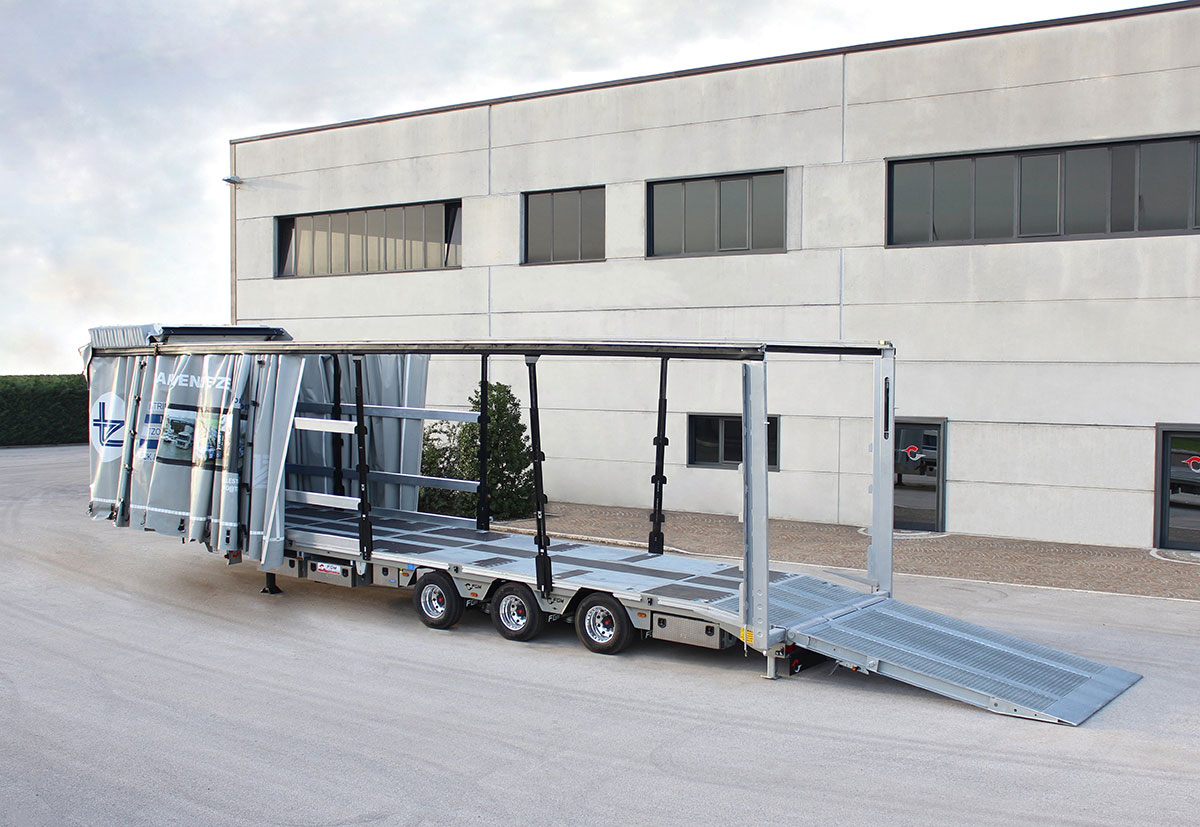

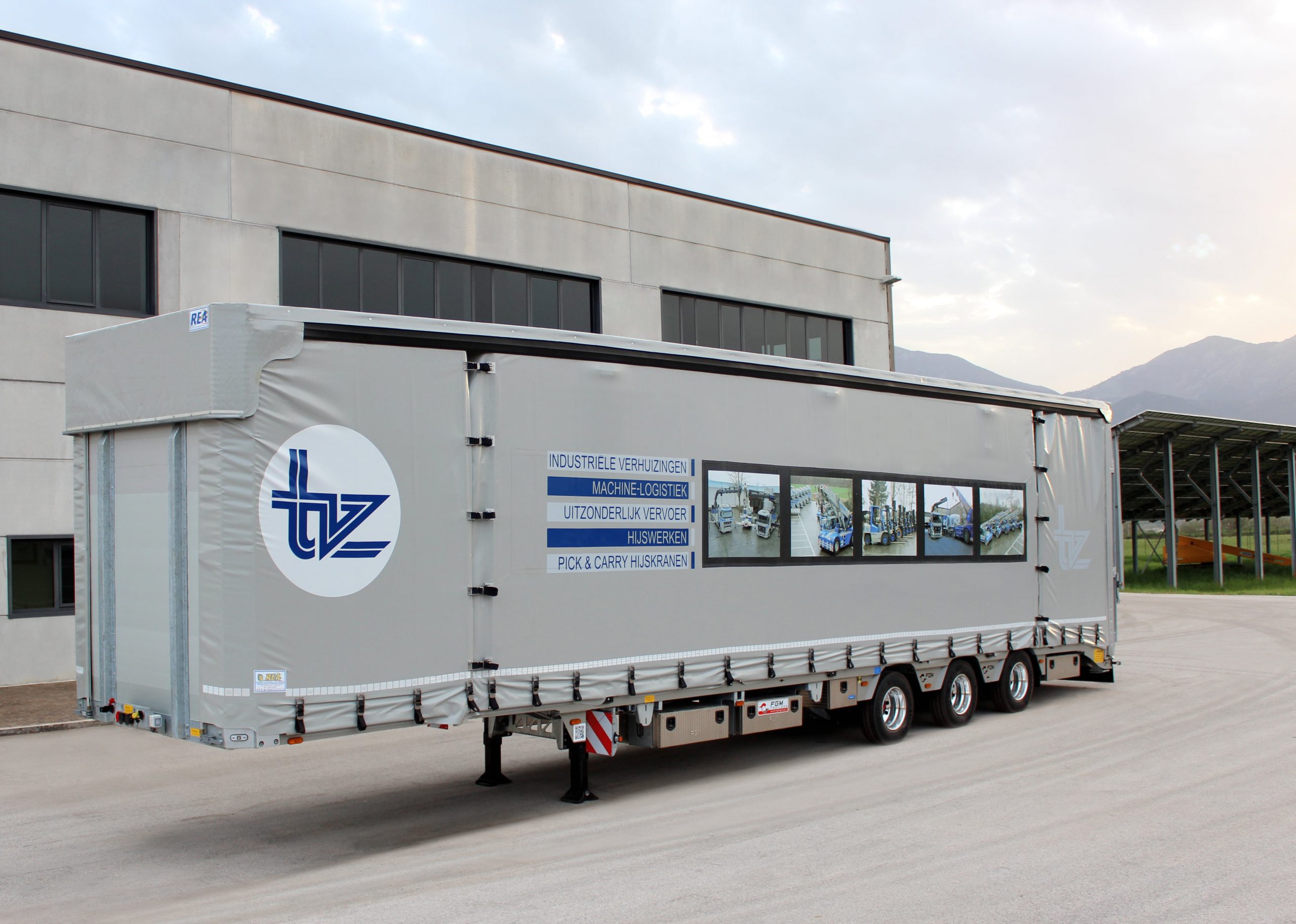

Built for those customers looking for the perfect balance between the optimized loading surface of low-loaders and the comfort of flatbed curtainsiders. The configuration is equipped with dual-length removable side curtains, hydraulic lifting roof and rear outriggers all conceived to guarantee efficient loading activities. Bewola lines and certified lashing rings have been installed on the entire loading platform for maximum load securing. This configuration is available with wheel recess series and extensive ramp options.
Maximum fifth wheel load 18.000 kg
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.3 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis

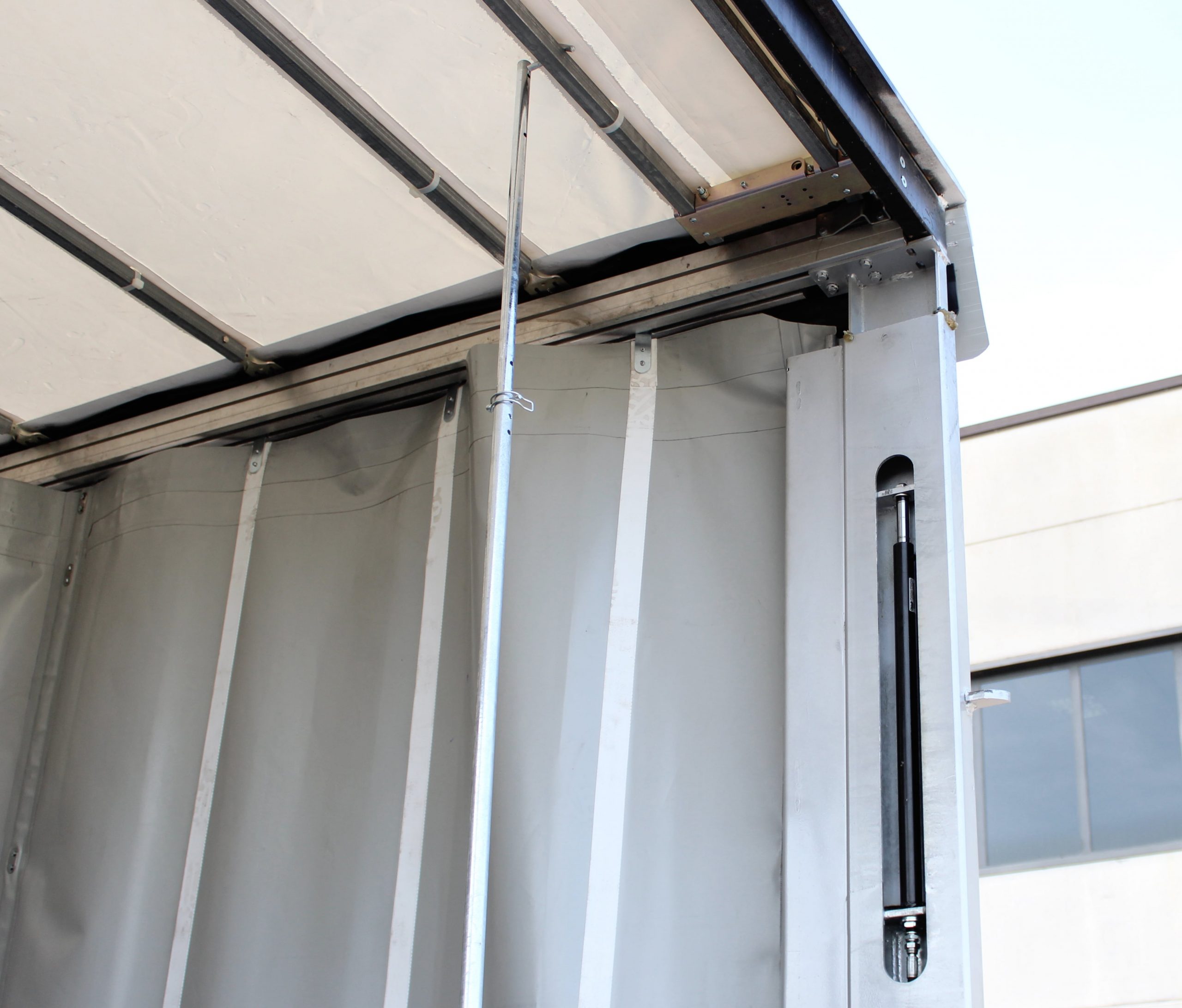

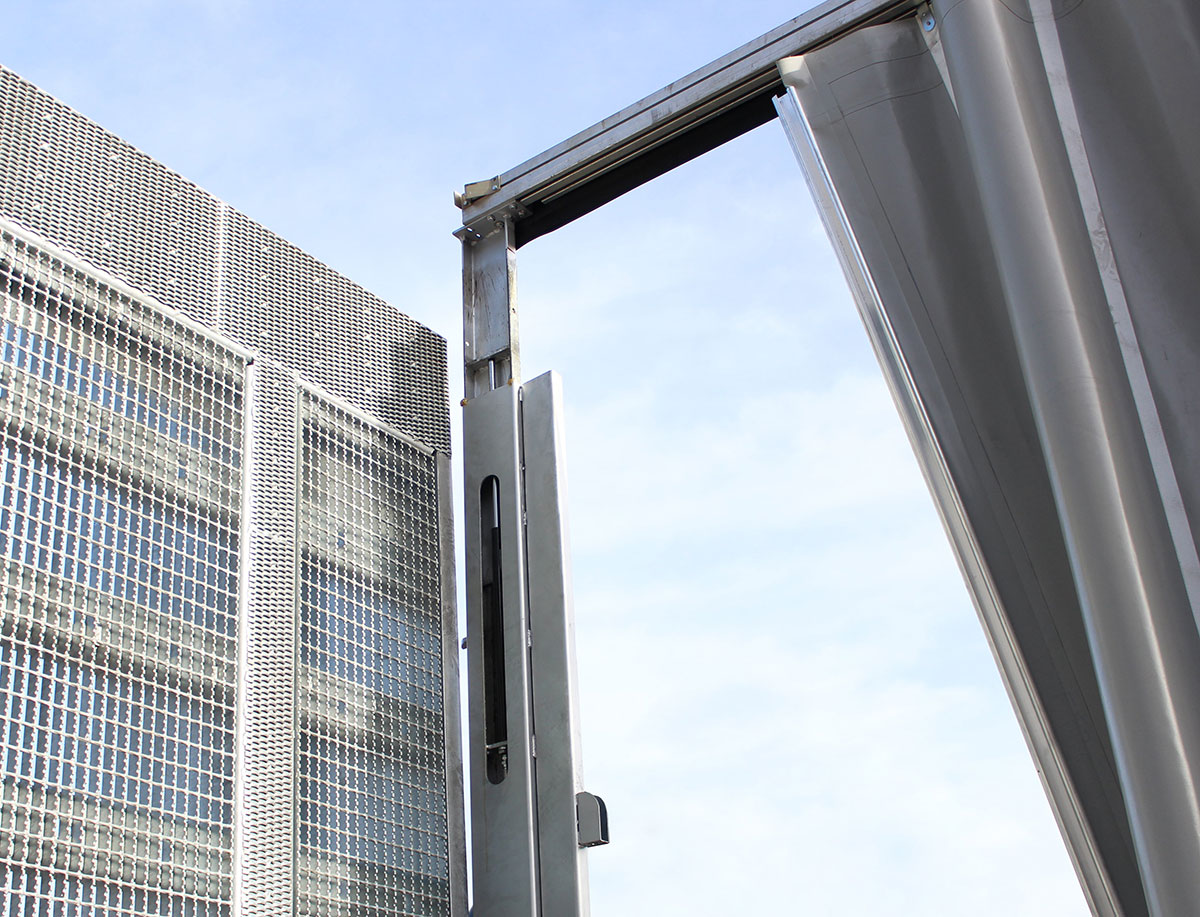

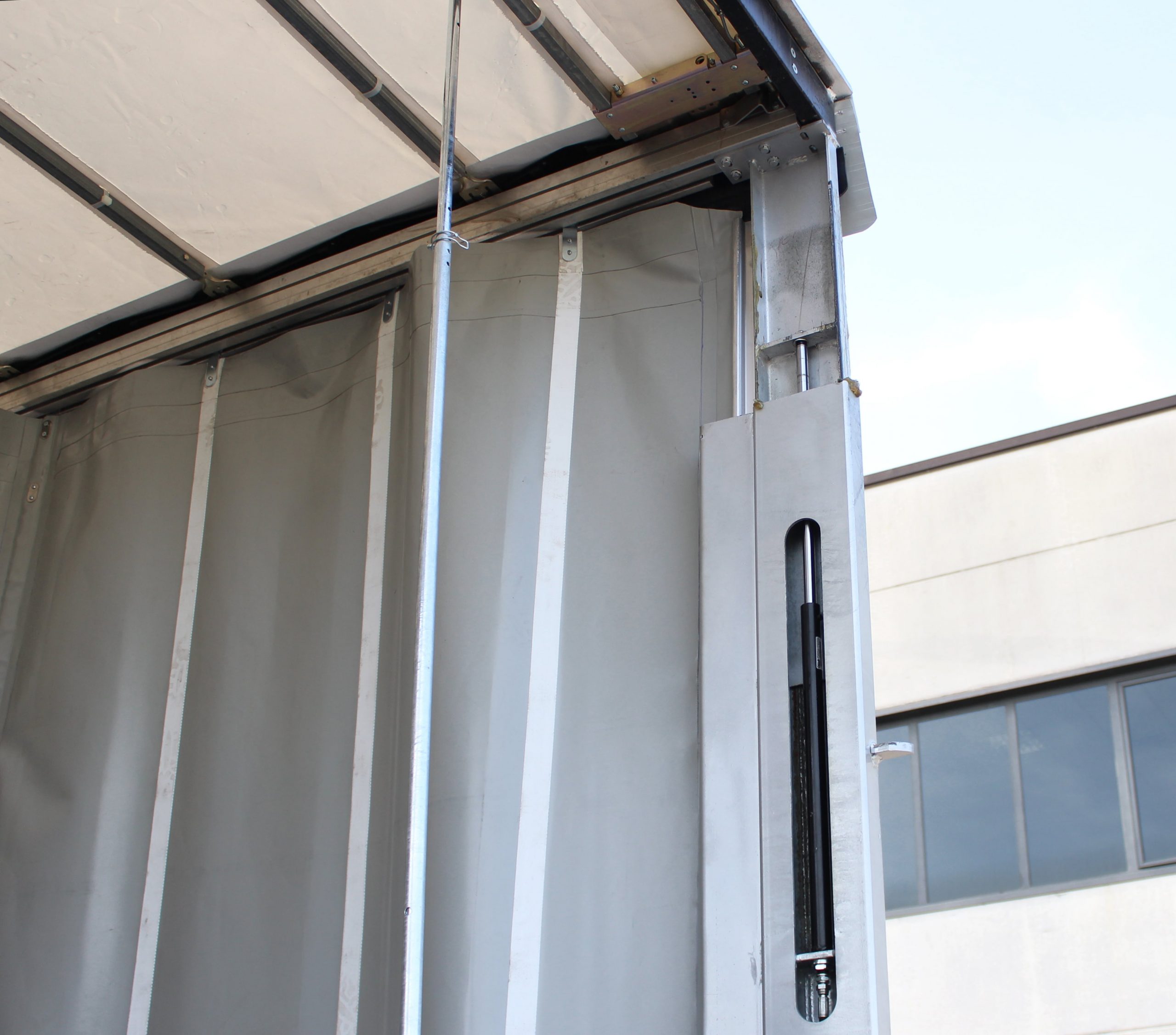

Hydraulic lifting roof
Hydraulic widening system
Customized trailer tarpaulin
Jost, double speed, landing gear
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 8.000 Kg, Wheel recess Kit |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |

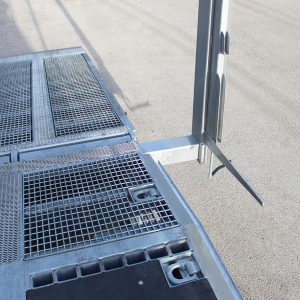

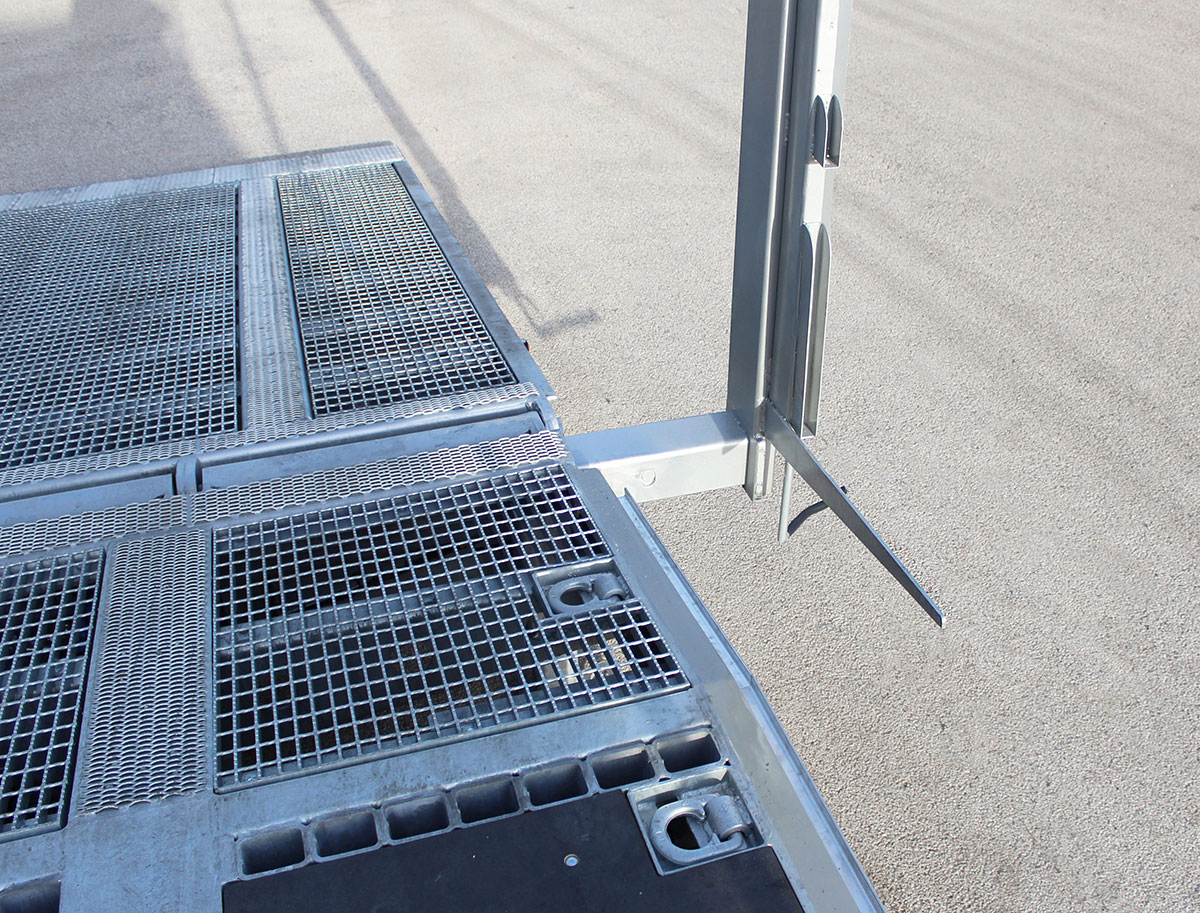

| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650 |
| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
