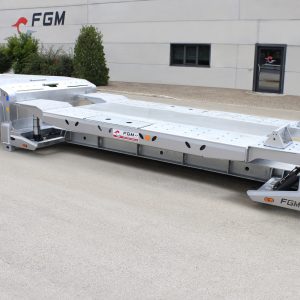

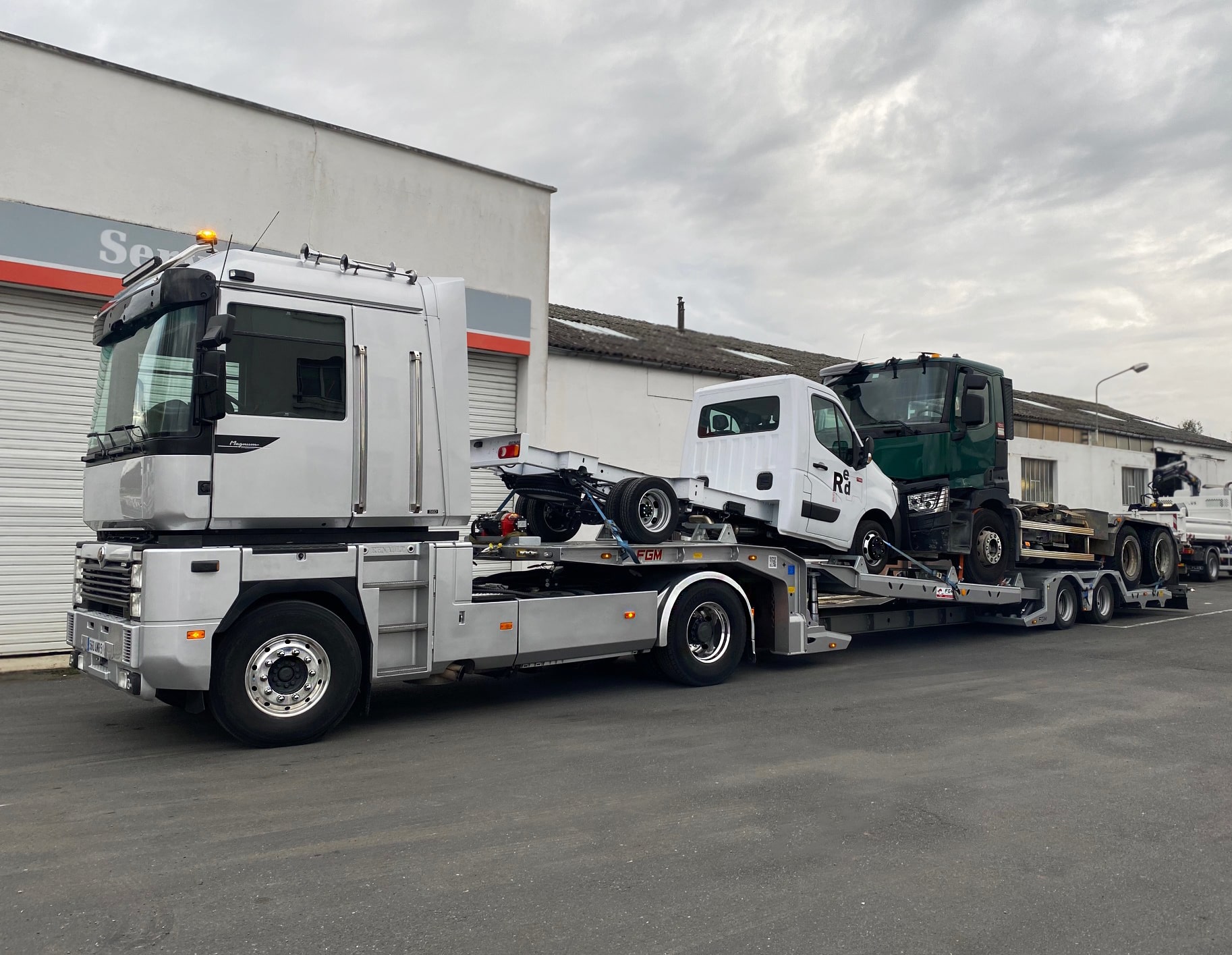

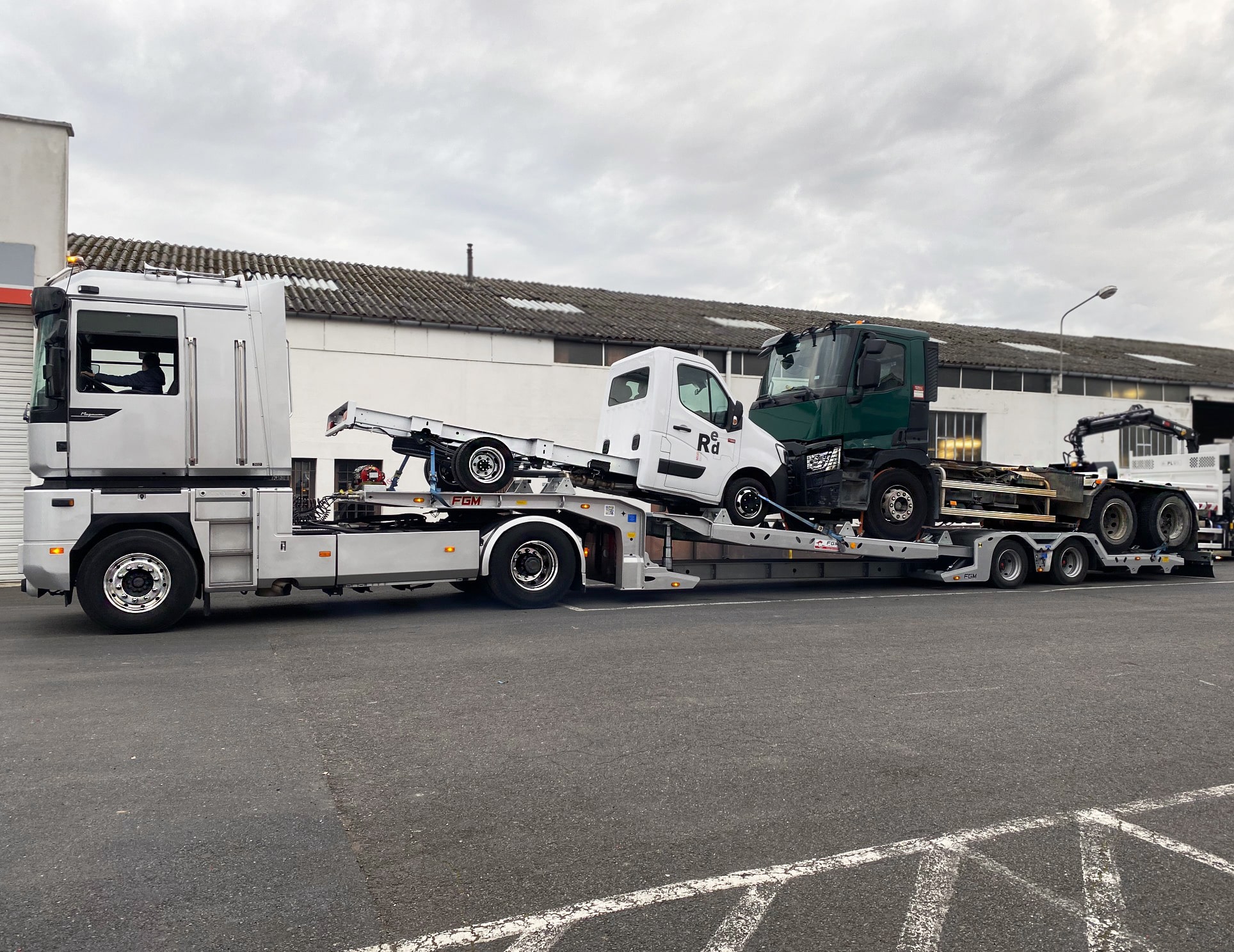

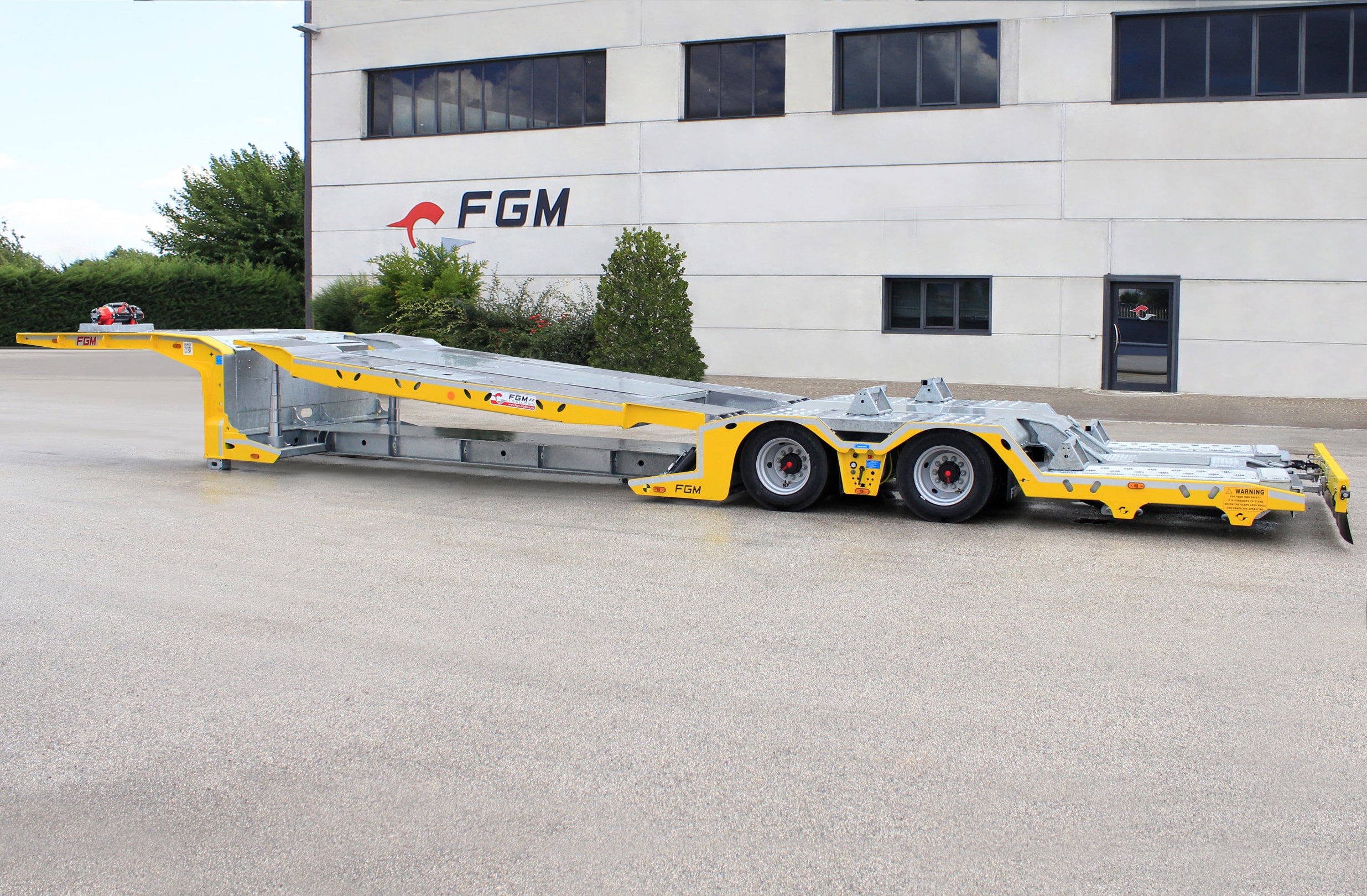

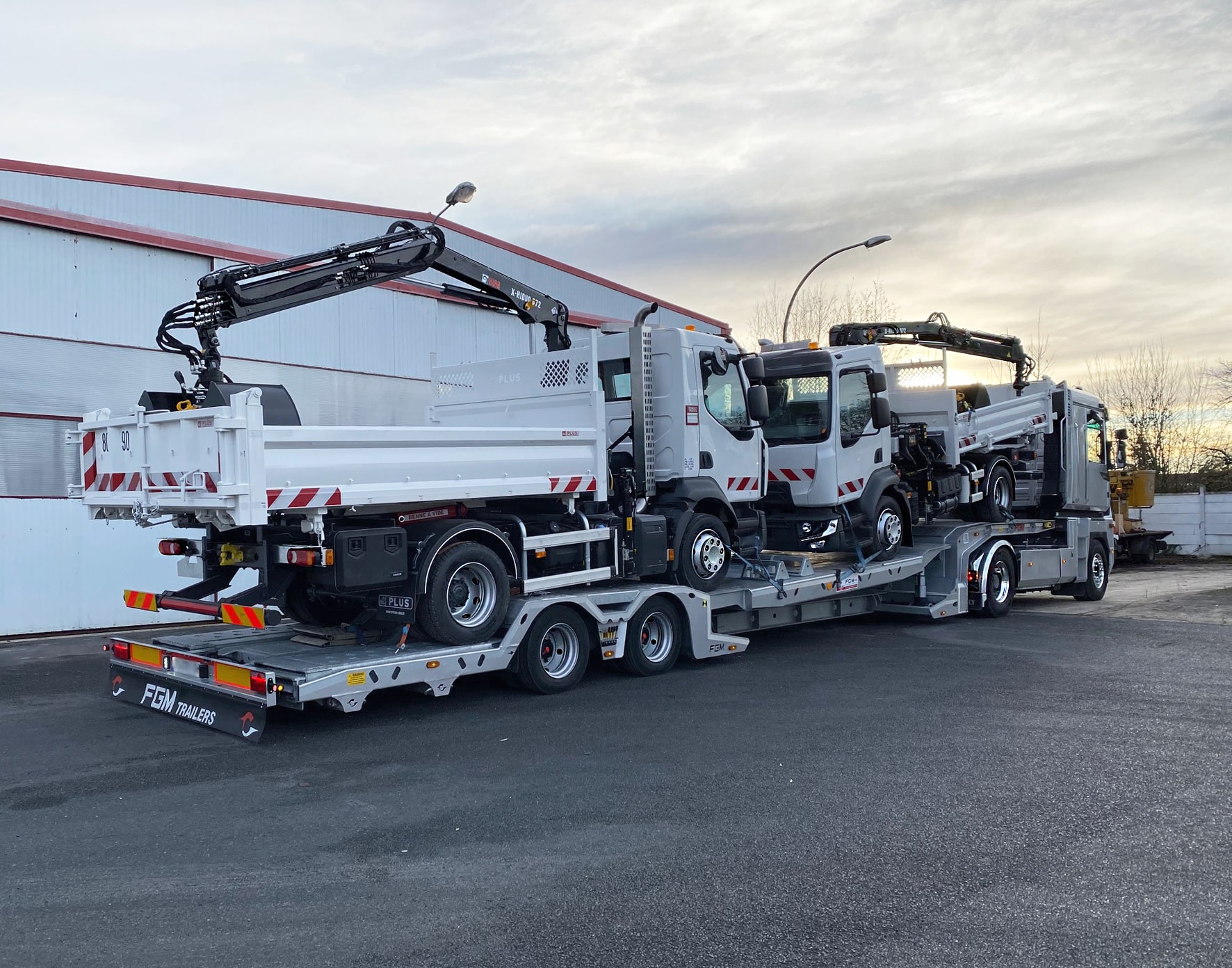

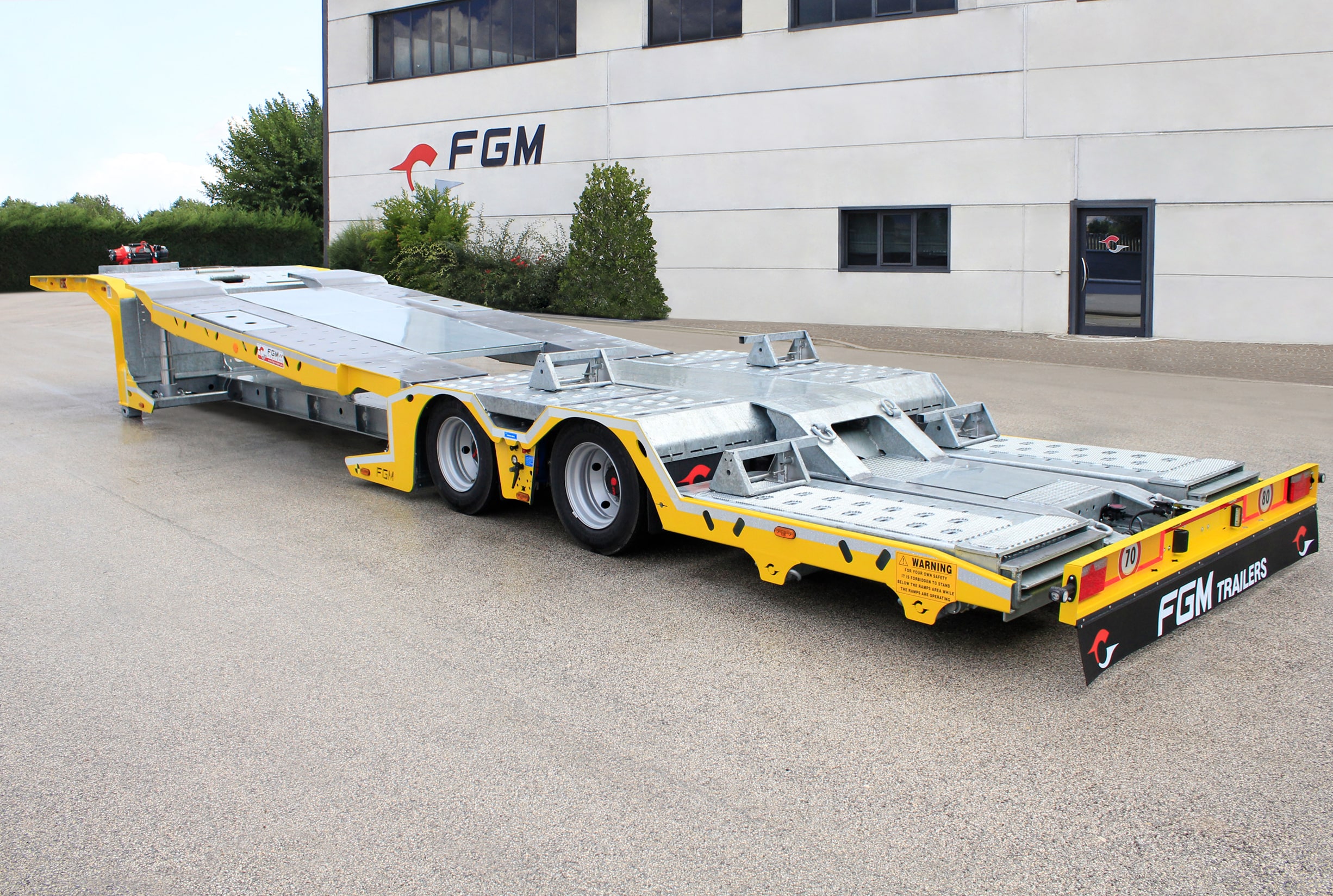

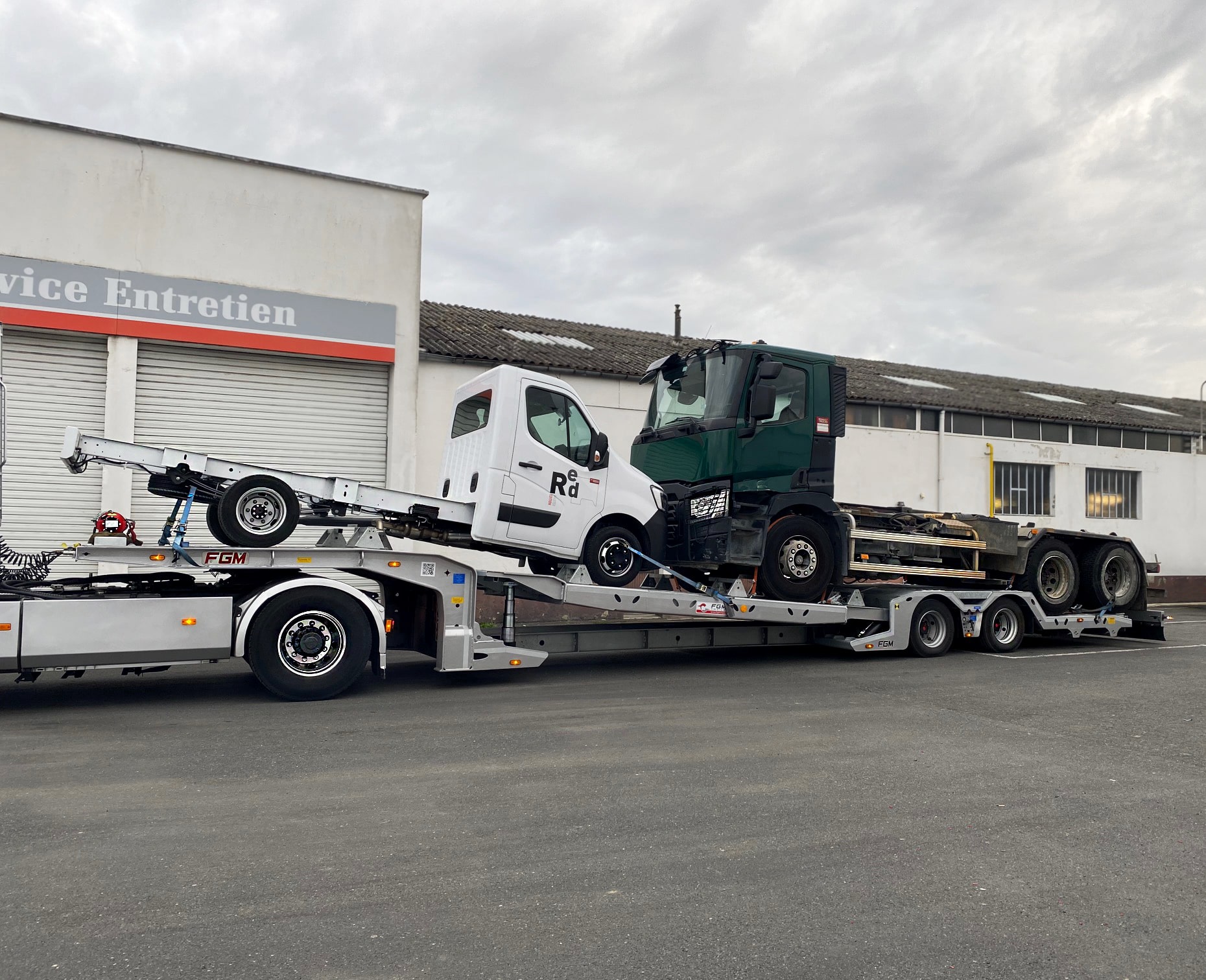

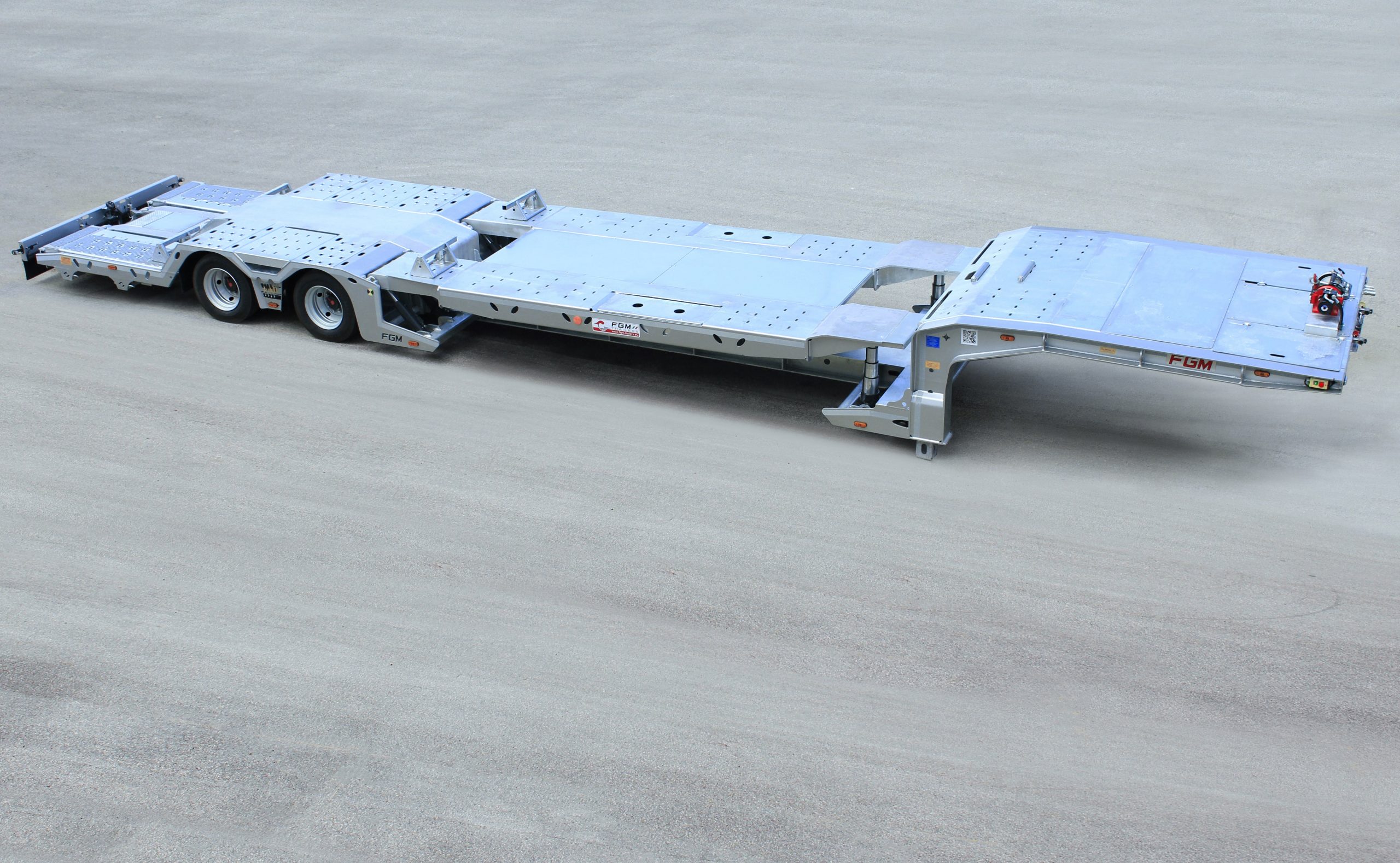

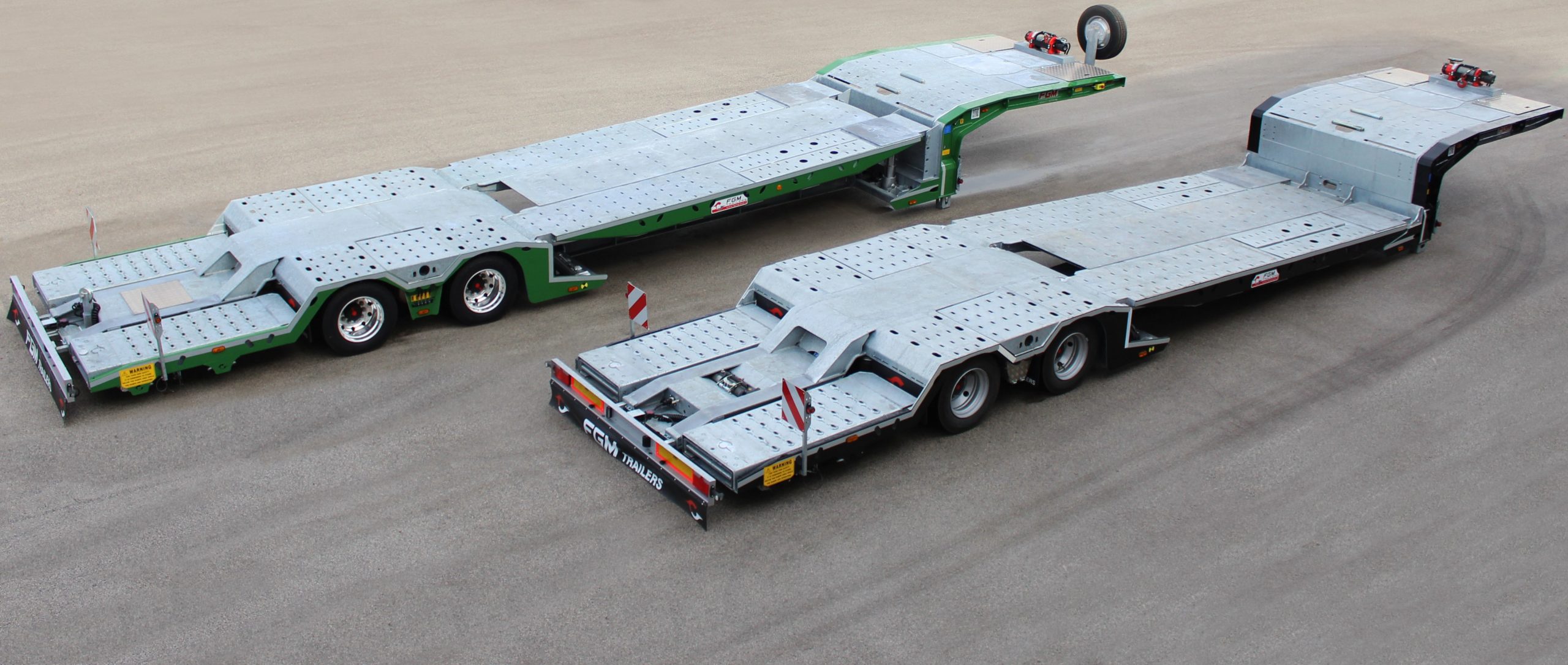

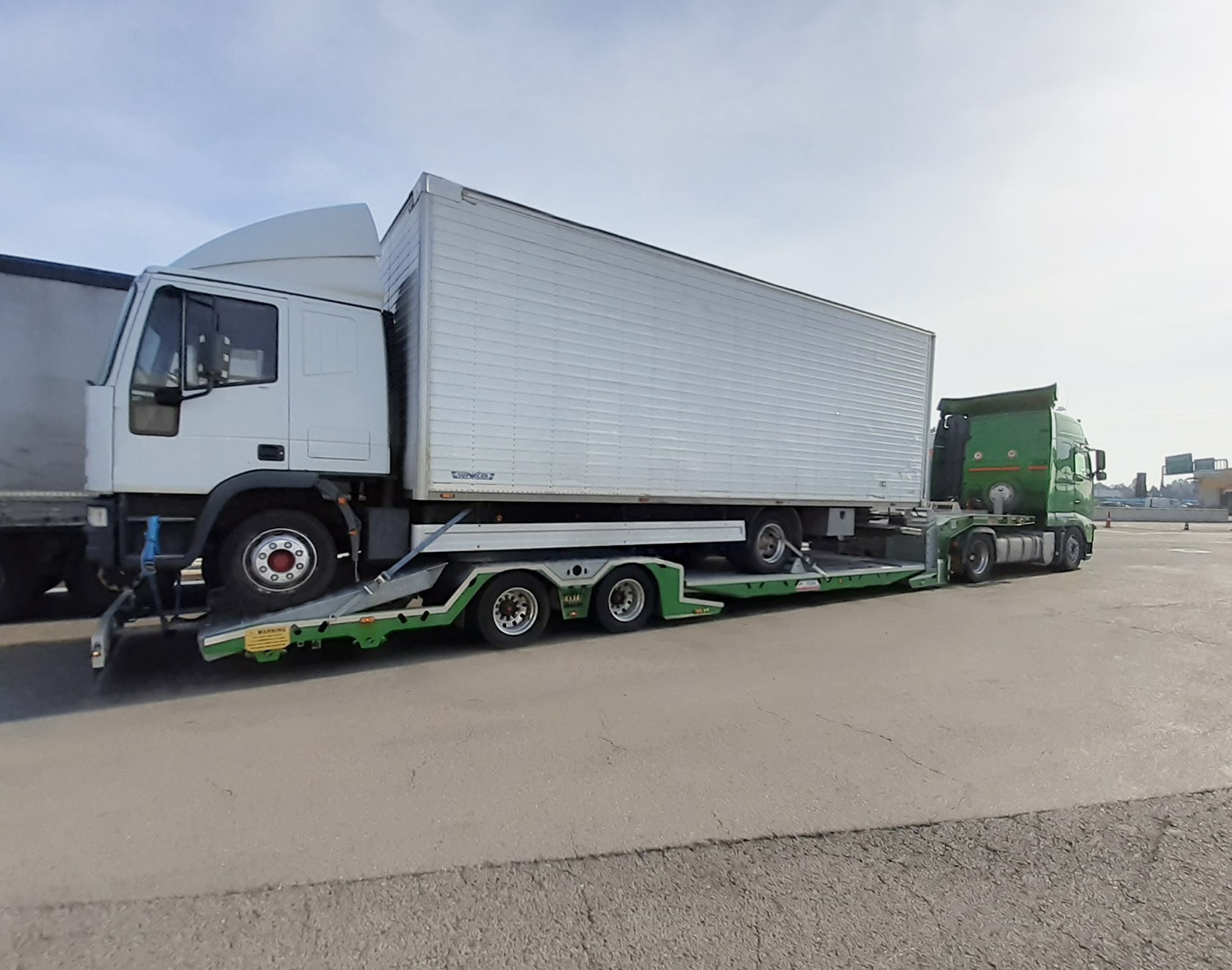

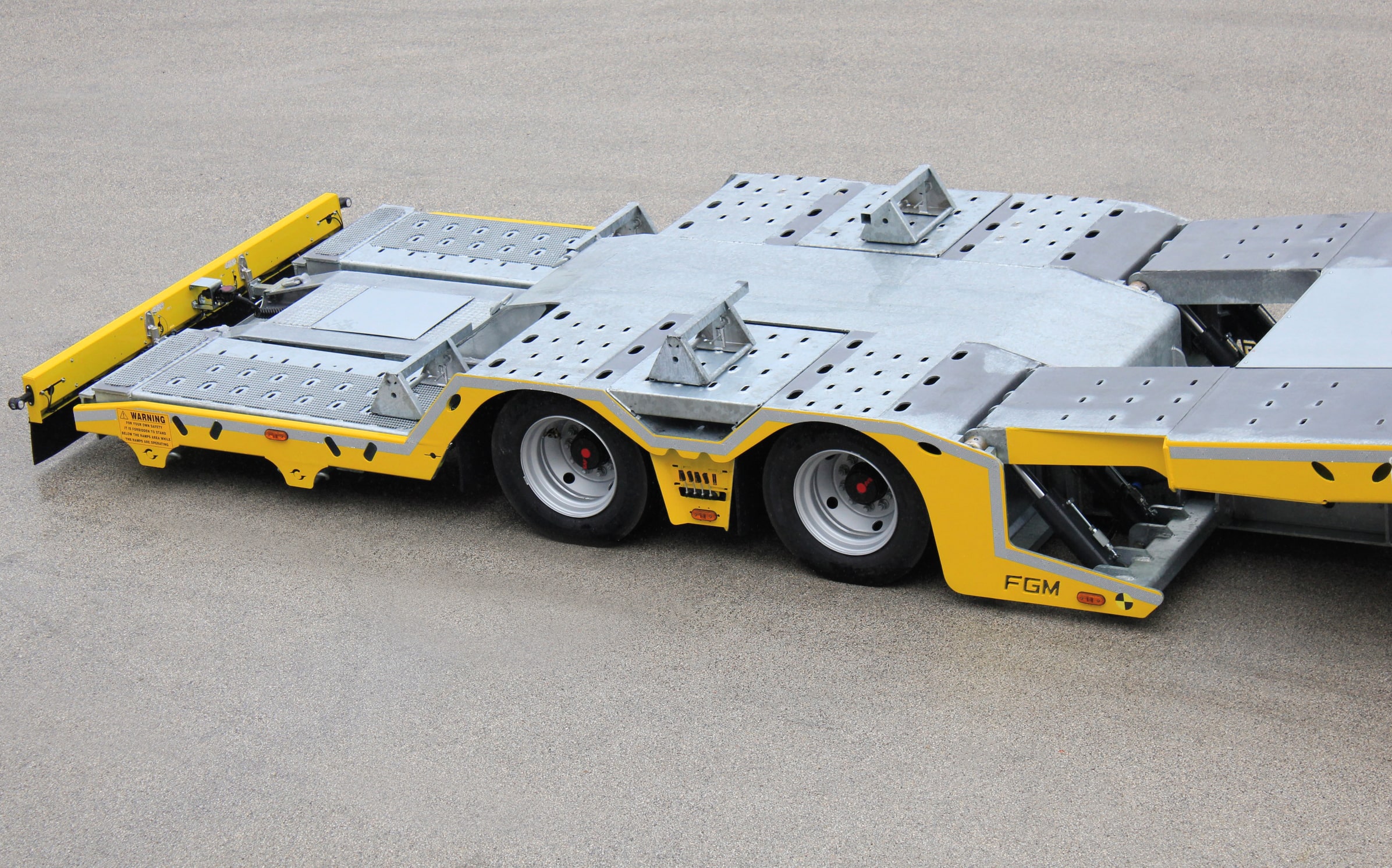

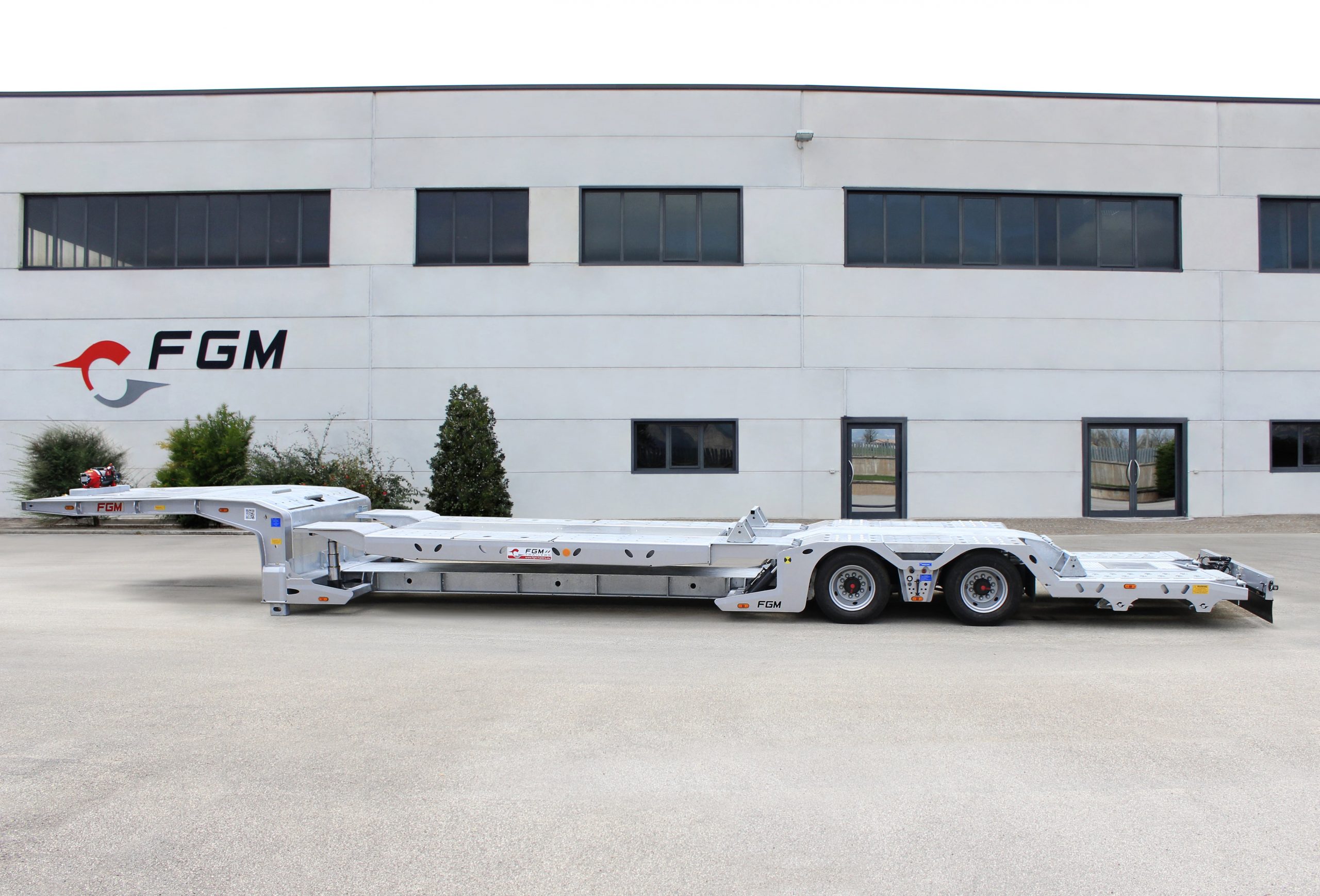

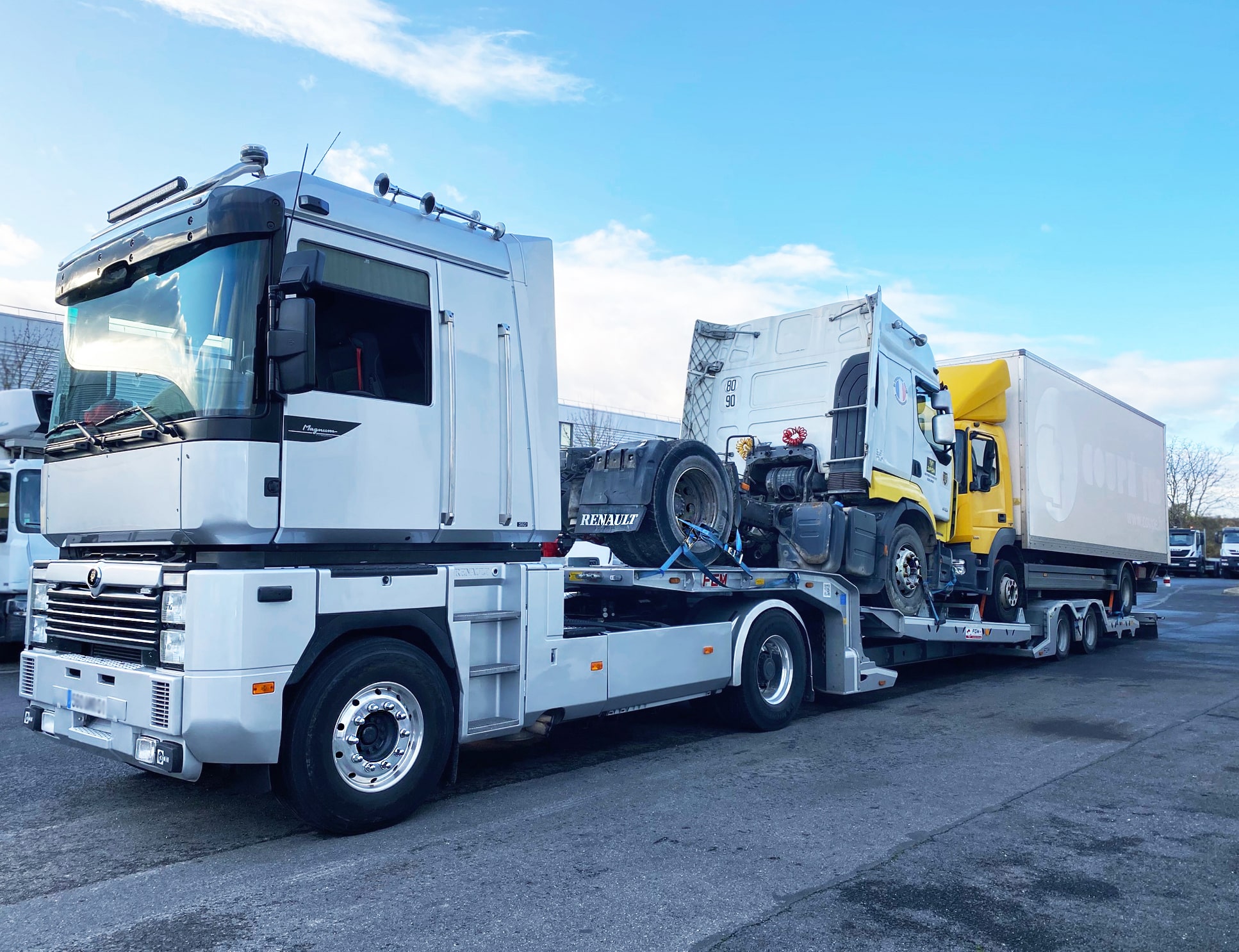

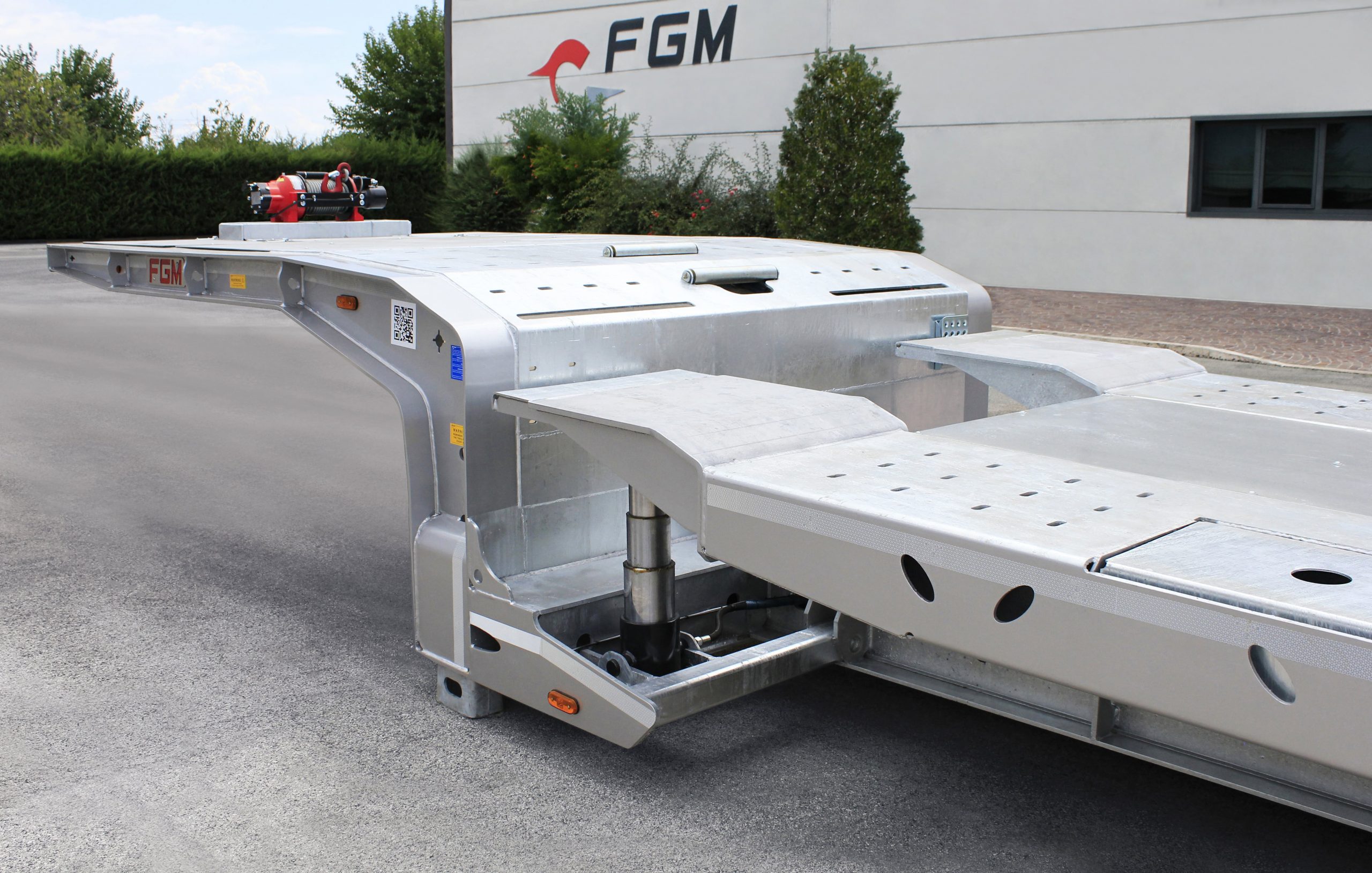

Built for maximized productivity, the FGM 26 in the accessorized configuration guarantees greater loading versatility. The hydraulic platform, adjustable in height and inclination, is designed to drive the loaded vehicles to the gooseneck and lower them in the lowbed area. With a 180 mm wheel recess loading height, the configuration is highly adaptable to transport a large range of high and heavy. The front hydraulic winch in synergy with the fully drive-over hydraulic platform enables the user the loading of damaged heavy vehicles, buses and temperature-controlled trucks on the FGM 26 while staying within the legal cargo height.
Maximum fifth wheel load 18.000 kg
Loading height 180 – 390 mm
Tires 215/75 R 17.5
Tire load 8.240 kg at 100 km/h

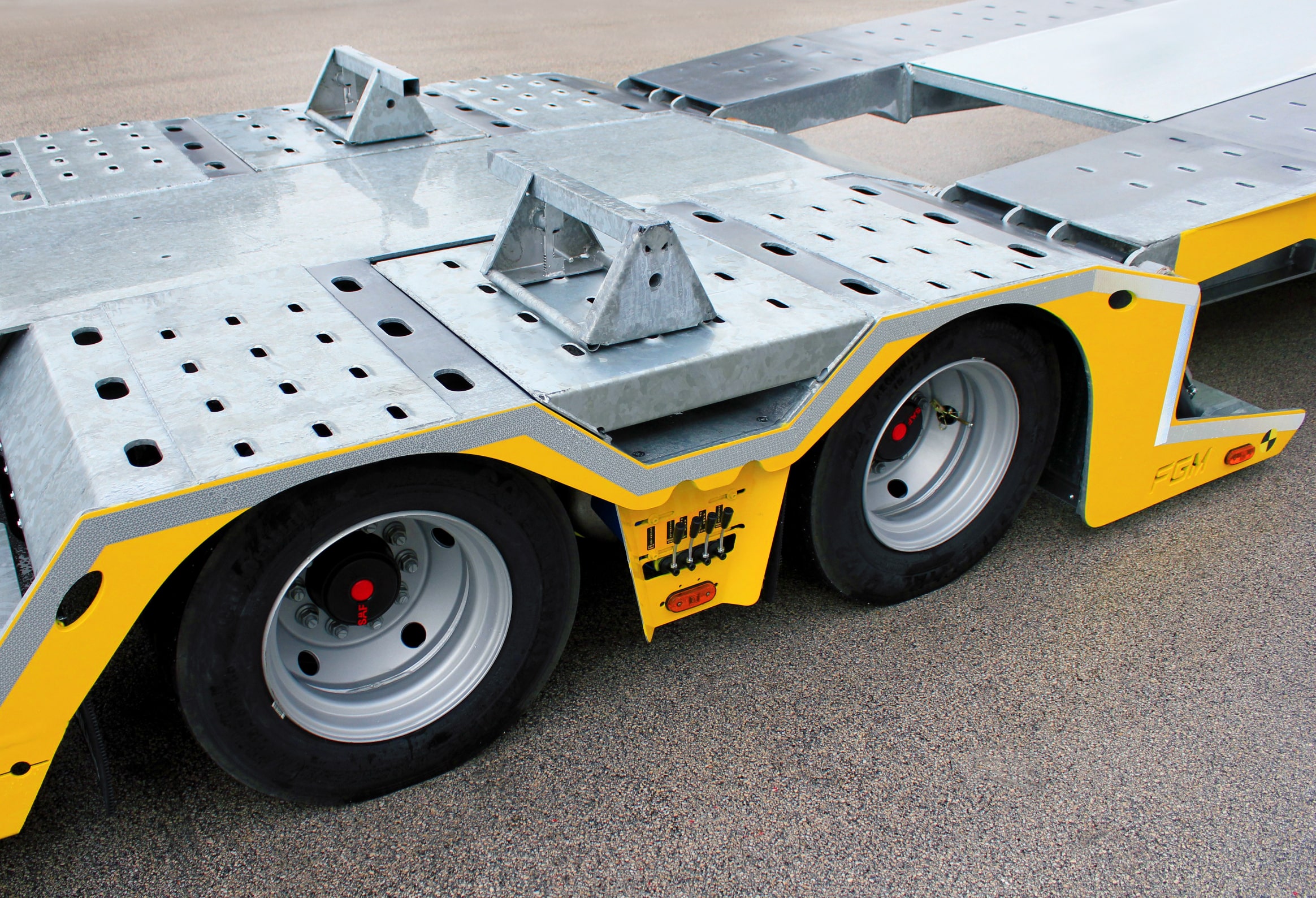

N.2 Axle SAF 11-ton, drum brakes

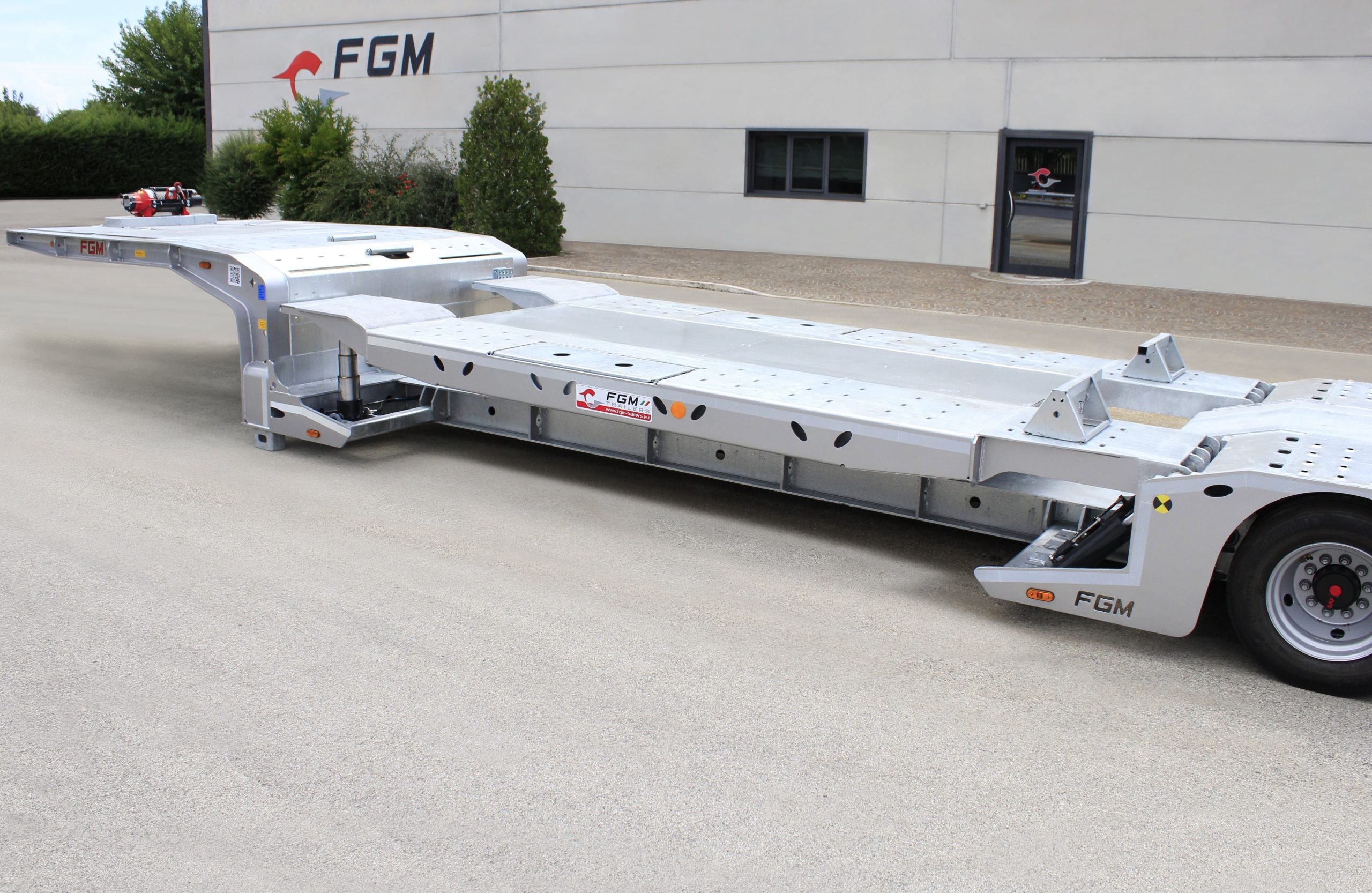

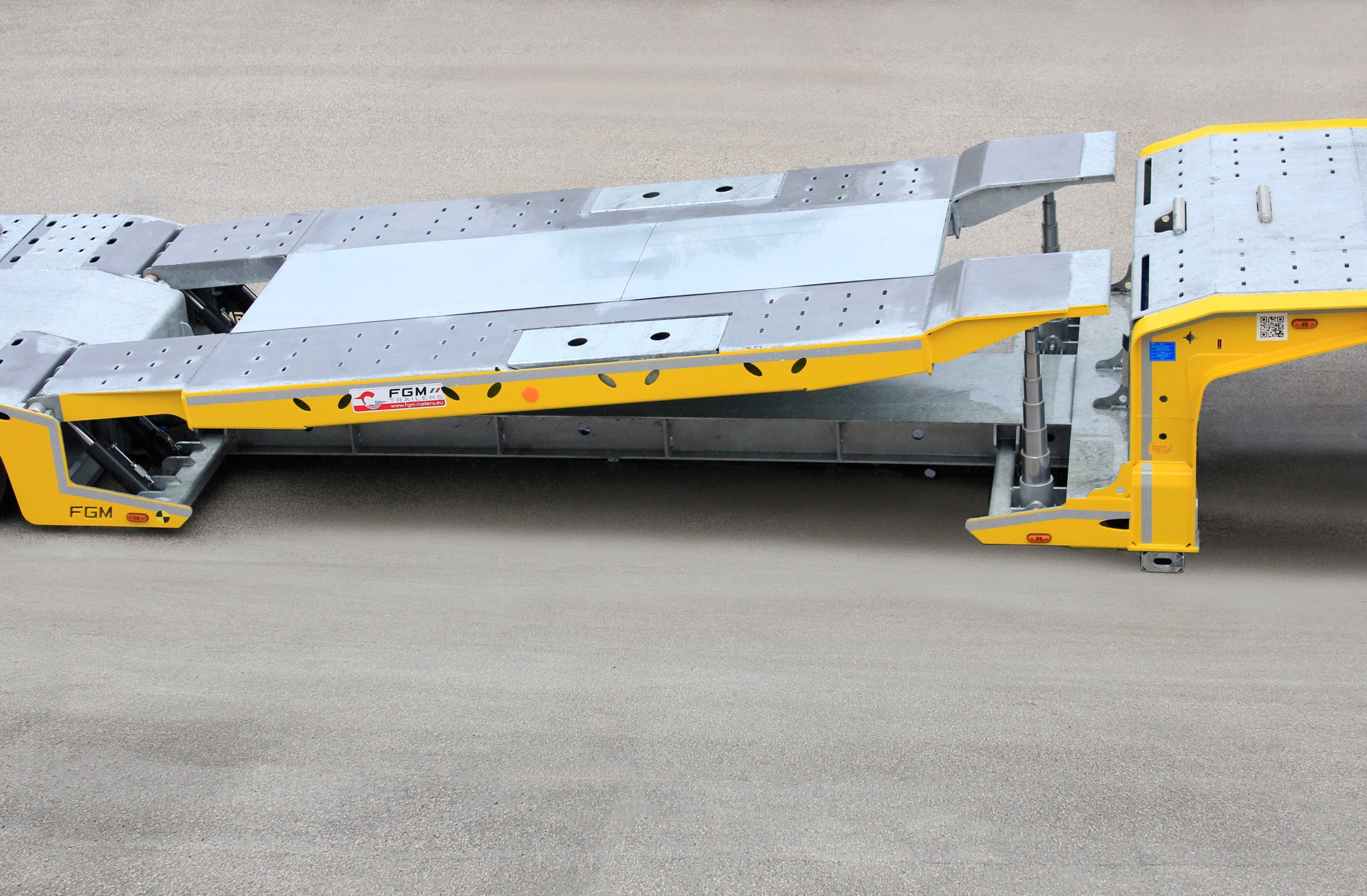

Entirely drivable hydraulic loading platform

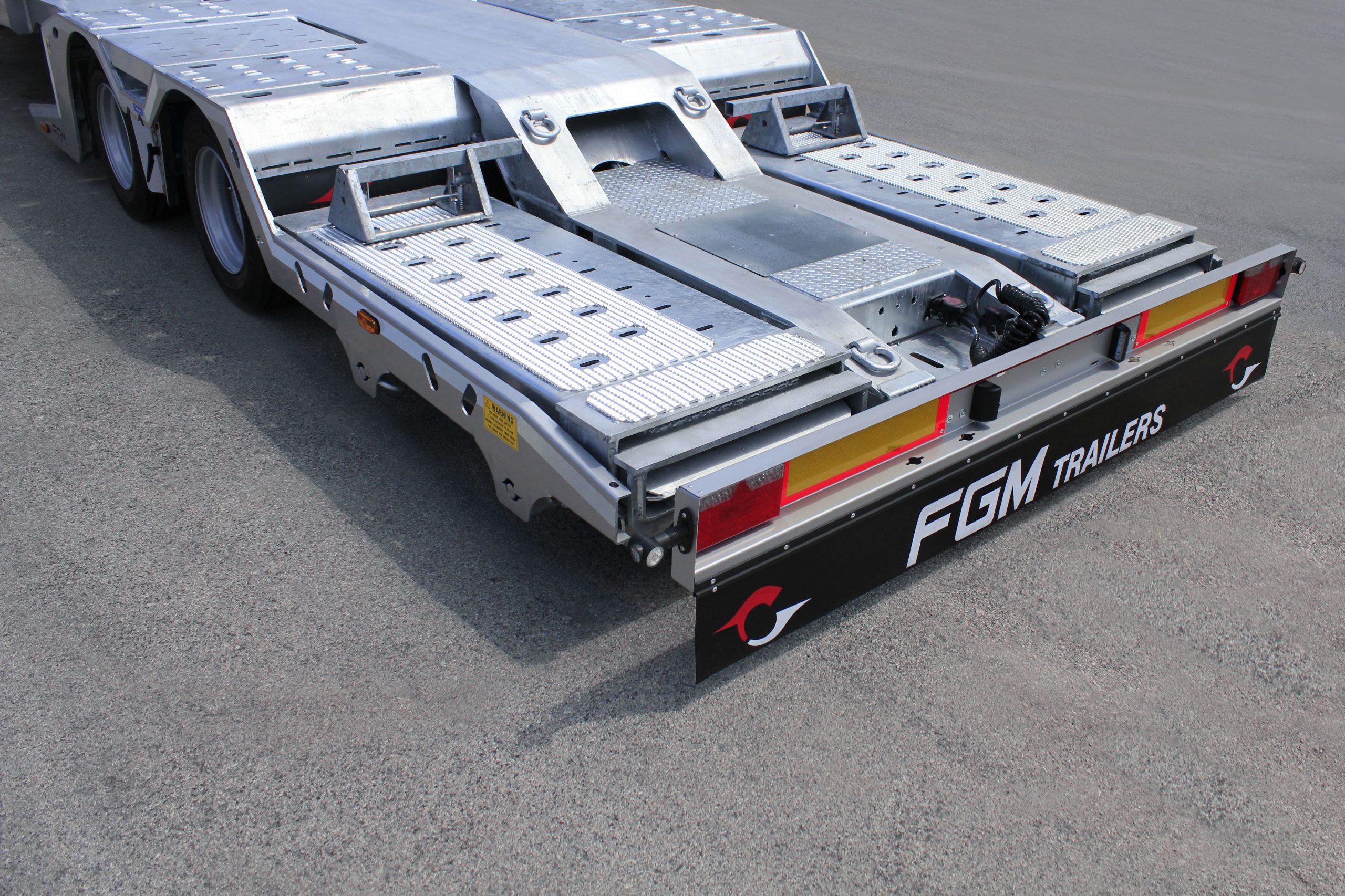

Wheel recesses + covers
Front hydraulic winch, 6.7-ton, remote control
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis
Hot-dip galvanized chassis
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Extra tire Kit, Gooseneck Curtainsider Kit, LED Working light, N.1 FGM toolbox, L500 x H 410 x W 2550 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, TIM, KNORR BREMSE, VIME Hydraulic winch, 4.400 Kg |
|---|---|
| Axles | 11-ton SAF, drum brakes, BPW 11-ton, drum brakes |

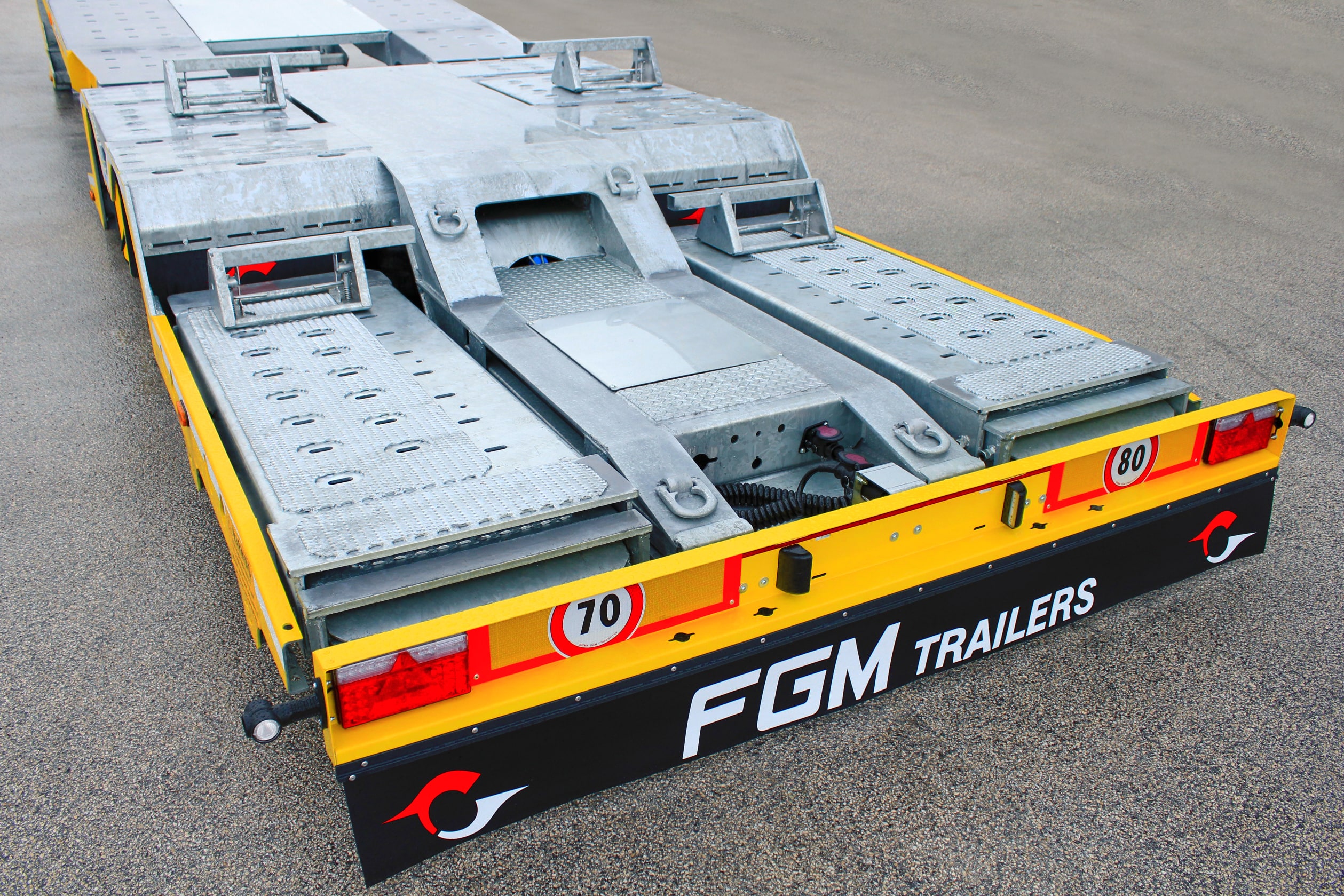

| Ramp type | Rear hydraulic ramps, double telescopic extension |
| Chassis | Independent hydraulic platform Kit |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
