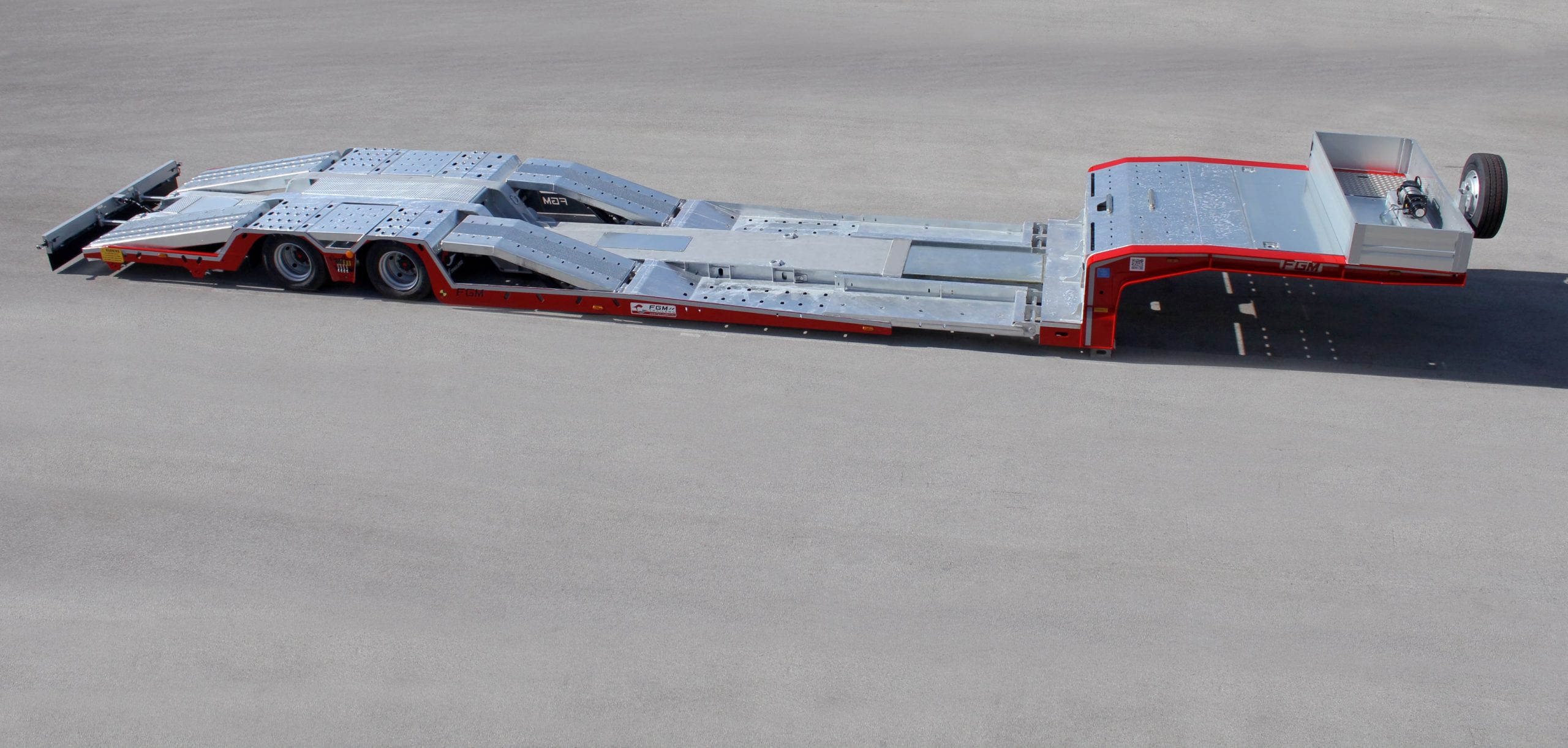

The FGM 26 in the extendable version represents the mid-range product built to meet all your needs. The telescopic extension of 1.700 mm and the loading height of 140 mm are the distinctive features of the configuration. This low loader is the ideal solution for transporting bulky heavy-duty vehicles over 10 m thanks to its 11.700 mm lowbed loading surface and the extendable rear bumper.
Maximum fifth wheel load 18.000 kg
Loading height 140 – 400 mm
Tires 215/75 R 17.5
Tire load 8.240 kg at 100 km/h
N.2 Axle SAF 11-ton, drum brakes
1.700 mm telescopic chassis

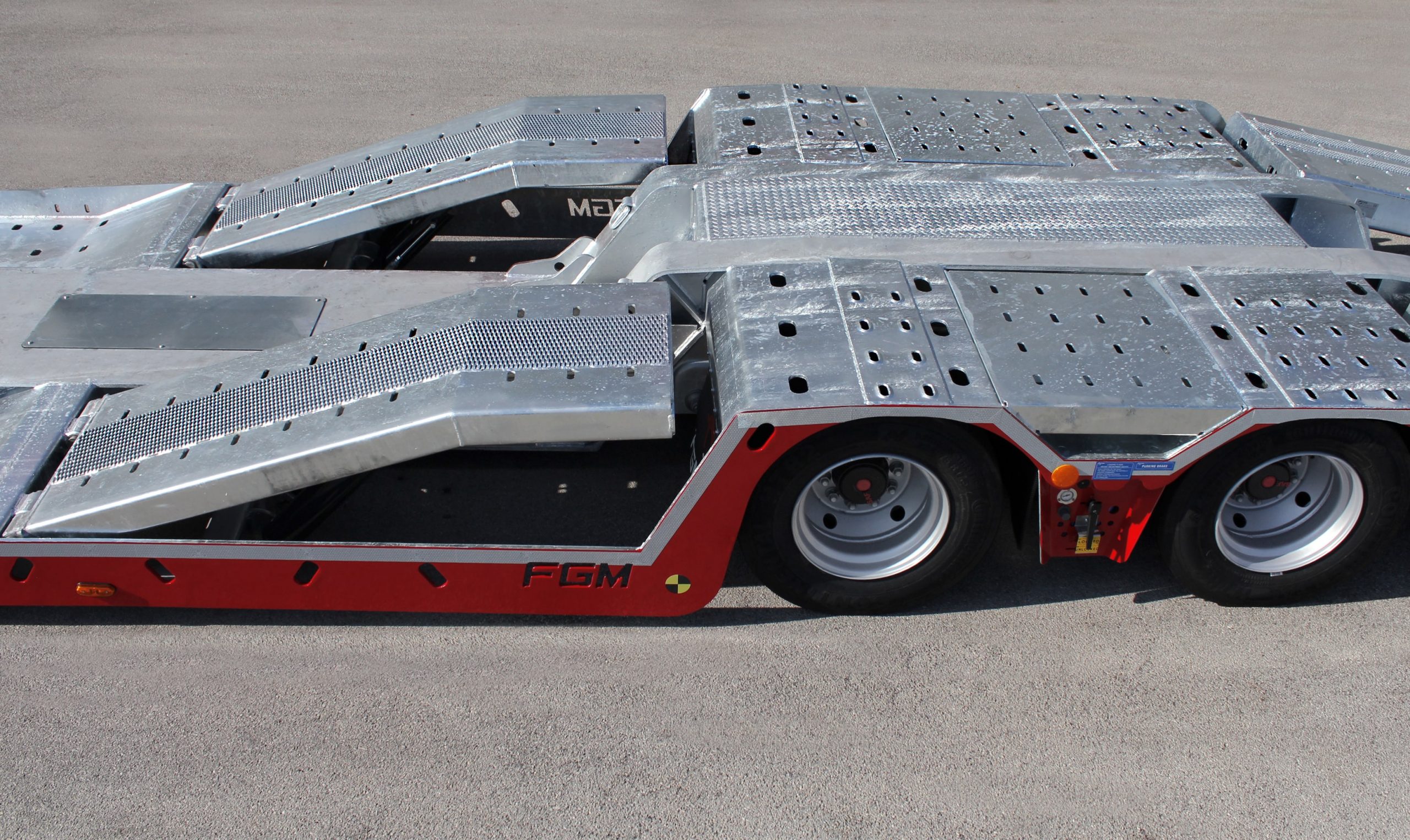

Wheel recesses + covers
Front hydraulic winch, 6.7-ton, remote control
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis
Hot-dip galvanized chassis
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Aluminum manual ramps, 2300×500 mm, Extra tire Kit, Gooseneck Curtainsider Kit, LED Working light, N.1 FGM toolbox, L500 x H 410 x W 2550 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, TIM, KNORR BREMSE, VIME Hydraulic winch, 4.400 Kg |
|---|---|
| Axles | 11-ton SAF, drum brakes, BPW 11-ton, drum brakes |

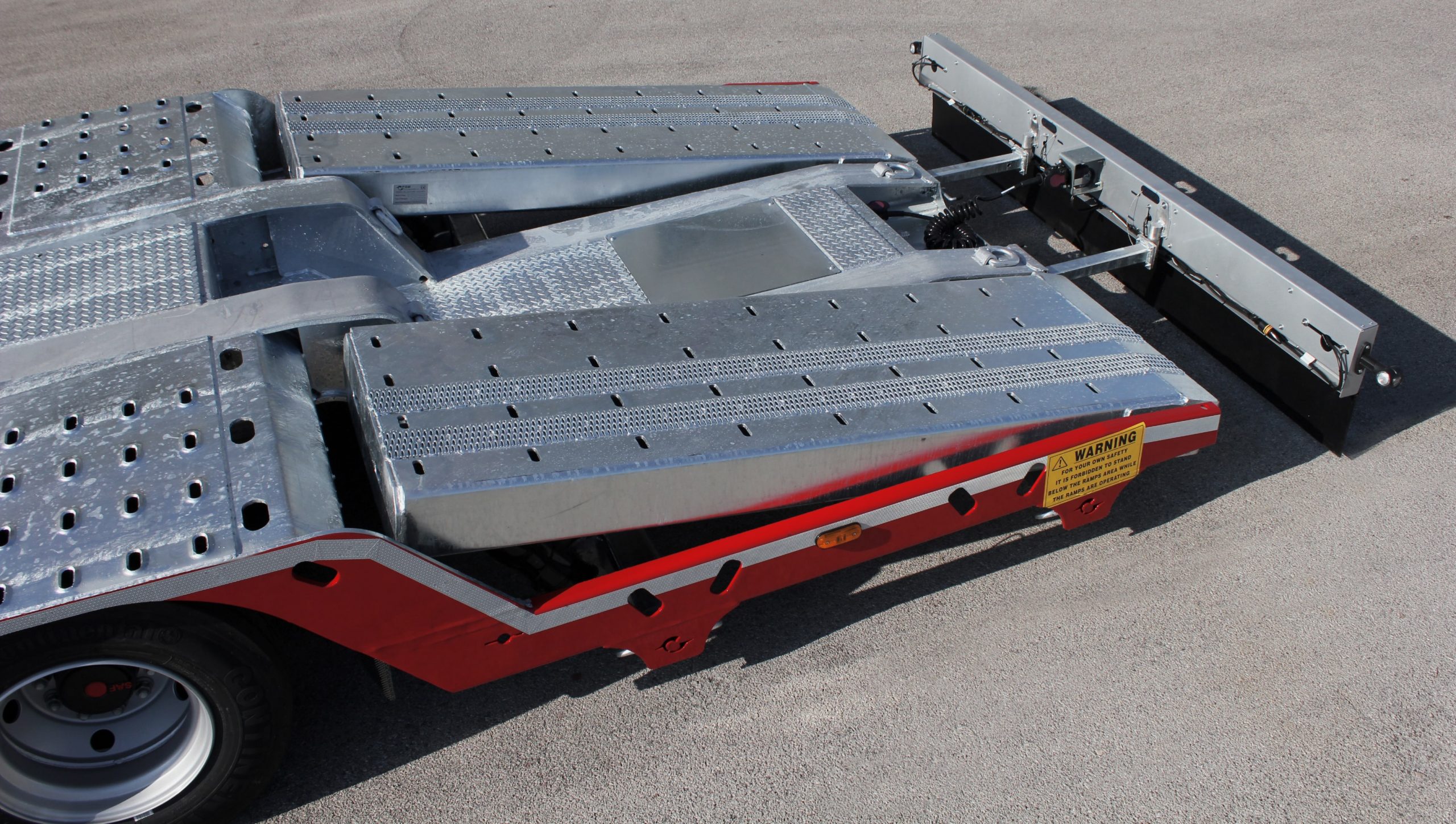

| Ramp type | Rear hydraulic ramps, double telescopic extension |
| Chassis | 1.700 mm telescopic extension |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
