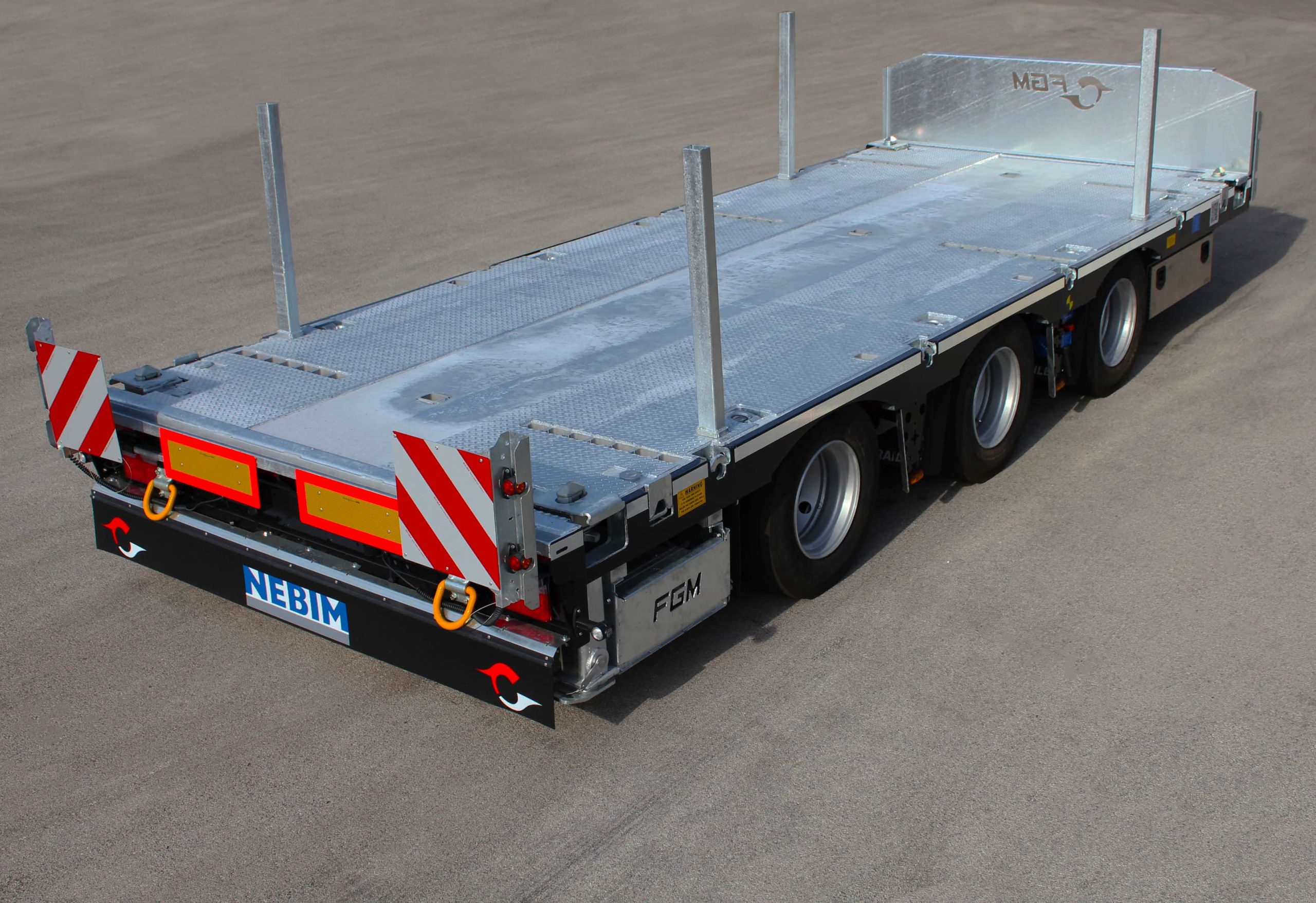

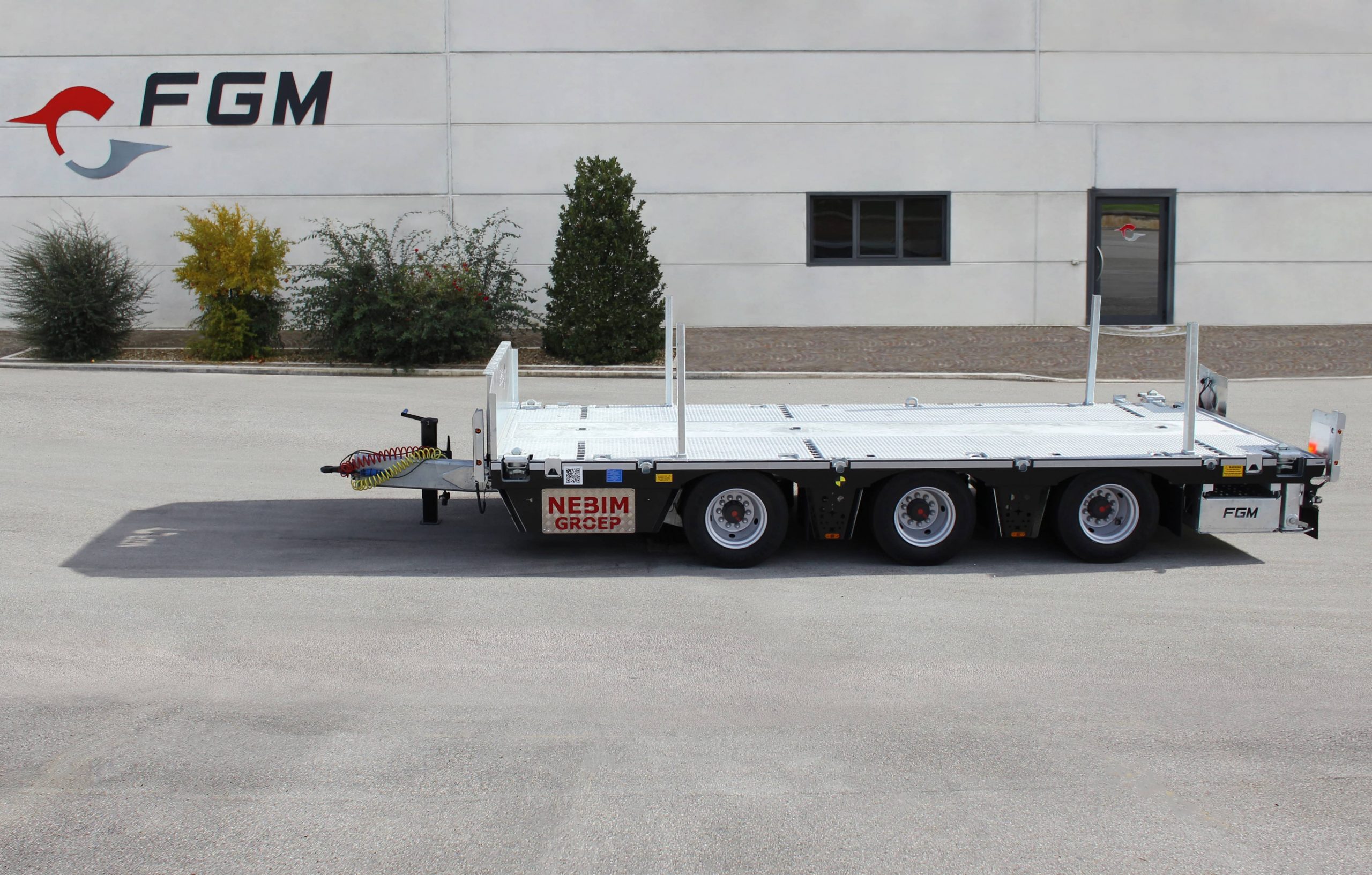

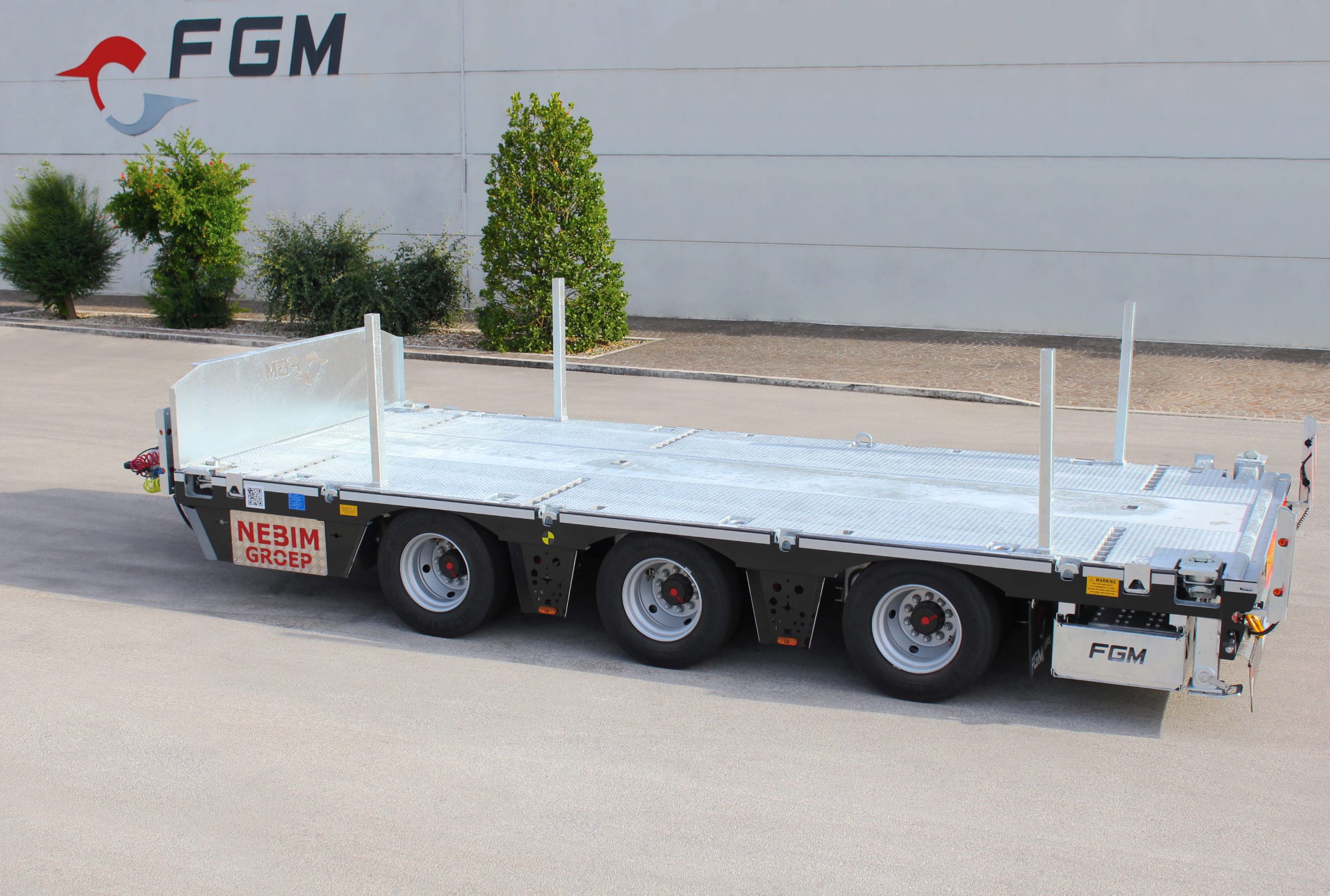

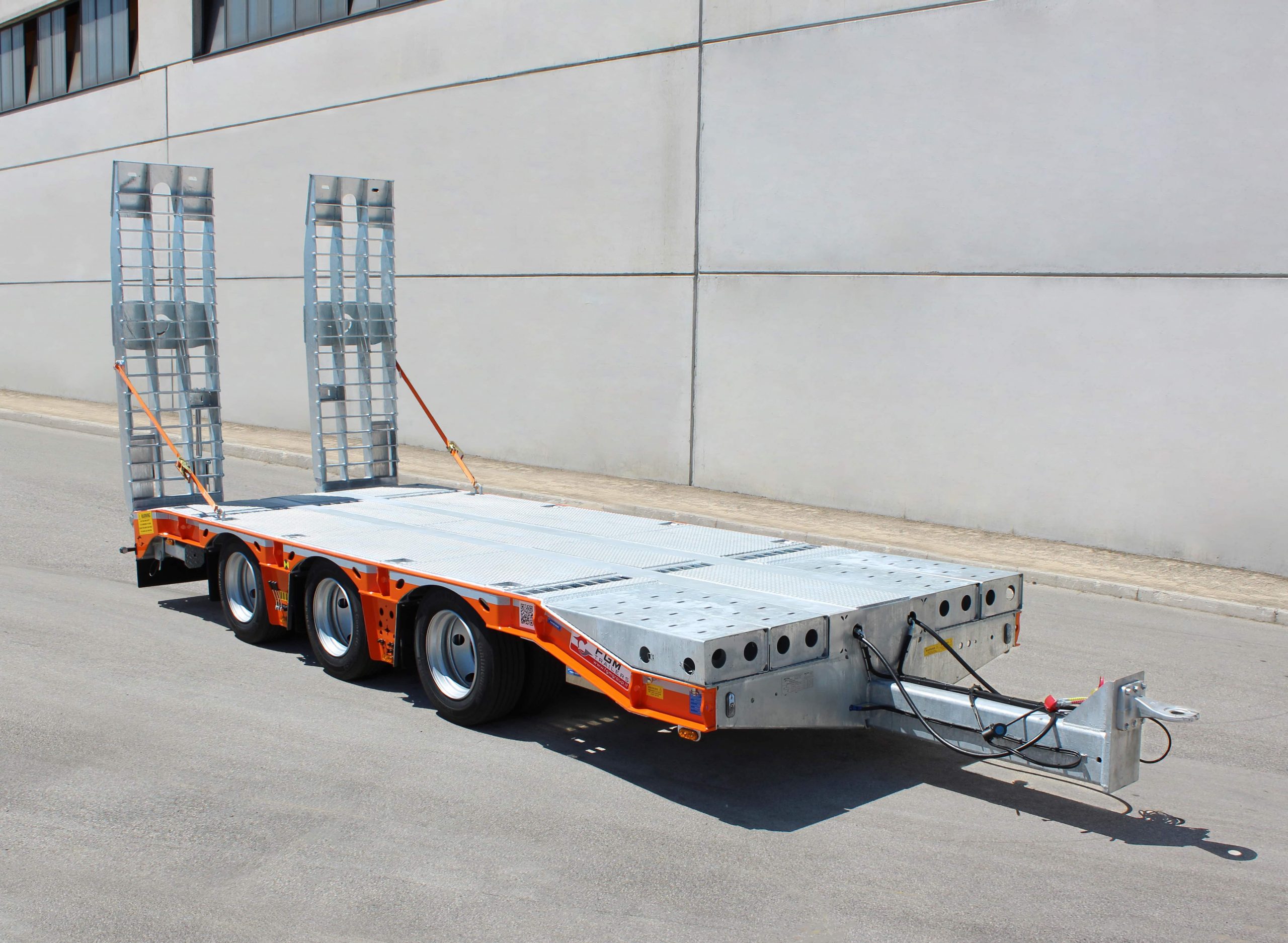

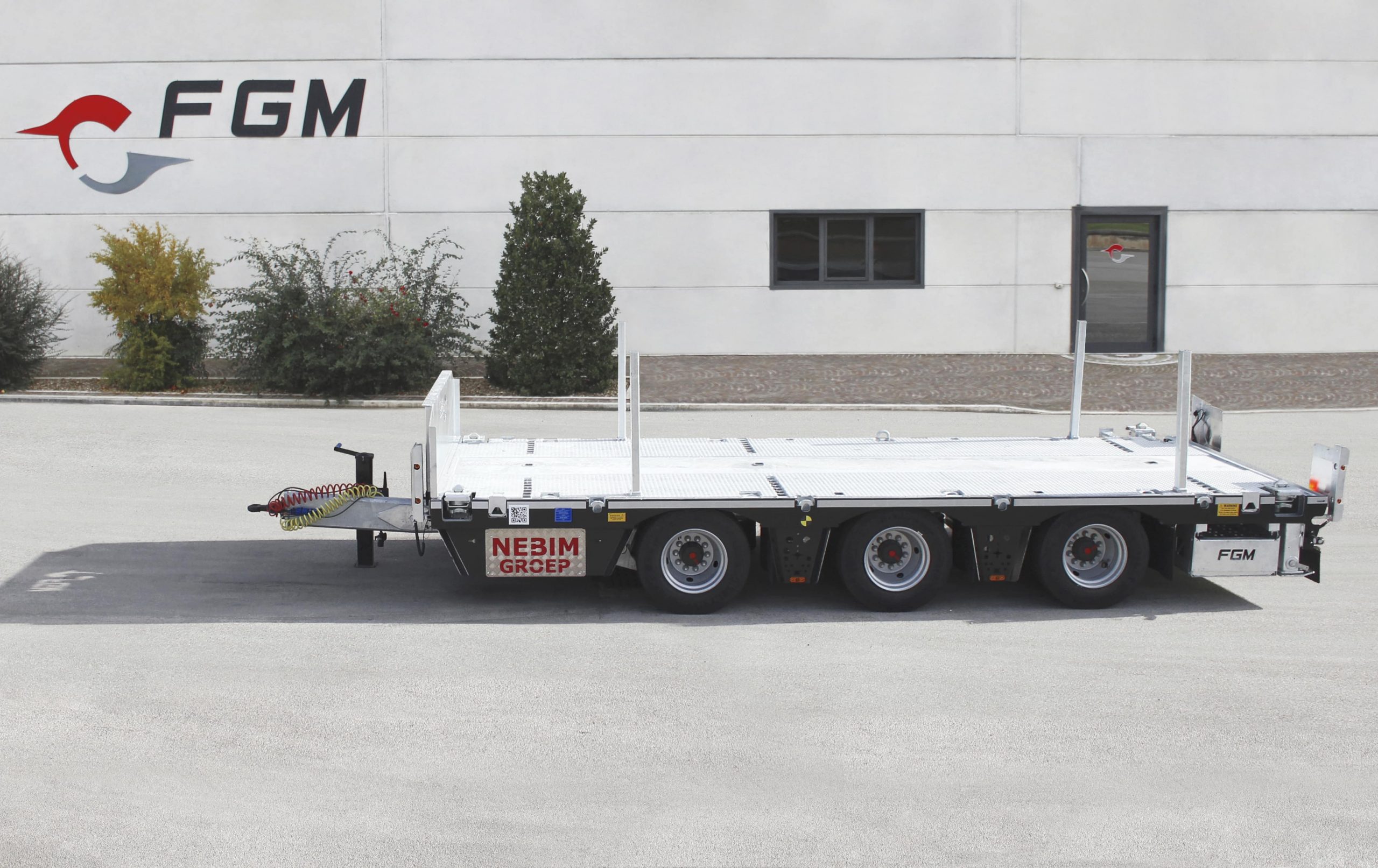

The centre-axle trailer FGM 24 replaces the traditional turntable with a rigid landing gear coupled to the towing truck. Designed for the transport of earthmoving machines, forest equipment, containers & much more, the FGM 24 stands for reliability and exceptional versatility. The model is manufactured using cutting-edge technology and engineering to guarantee you a premium quality vehicle.
Loading platform 6000-9000 mm
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.3 Axle SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
Customizable length

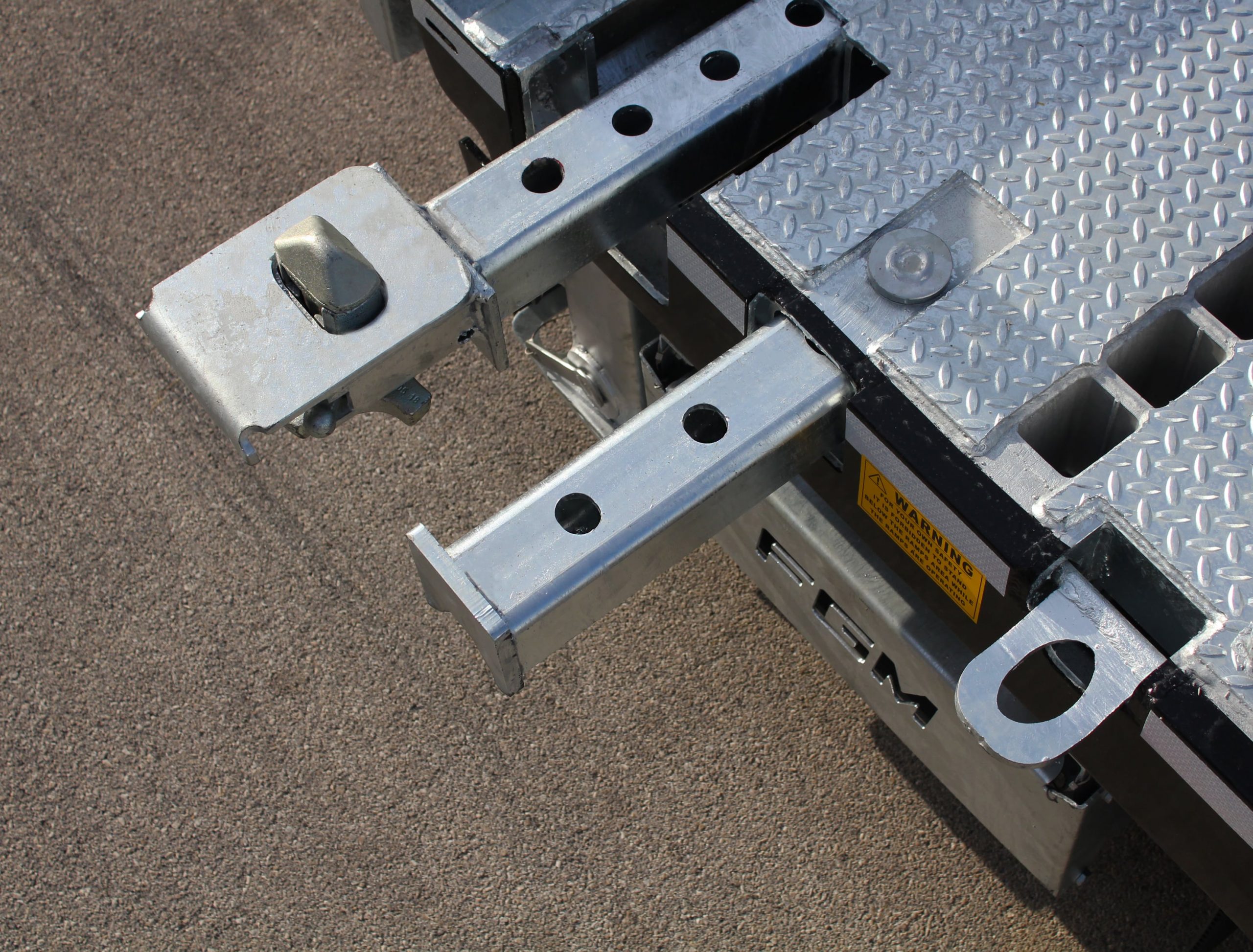

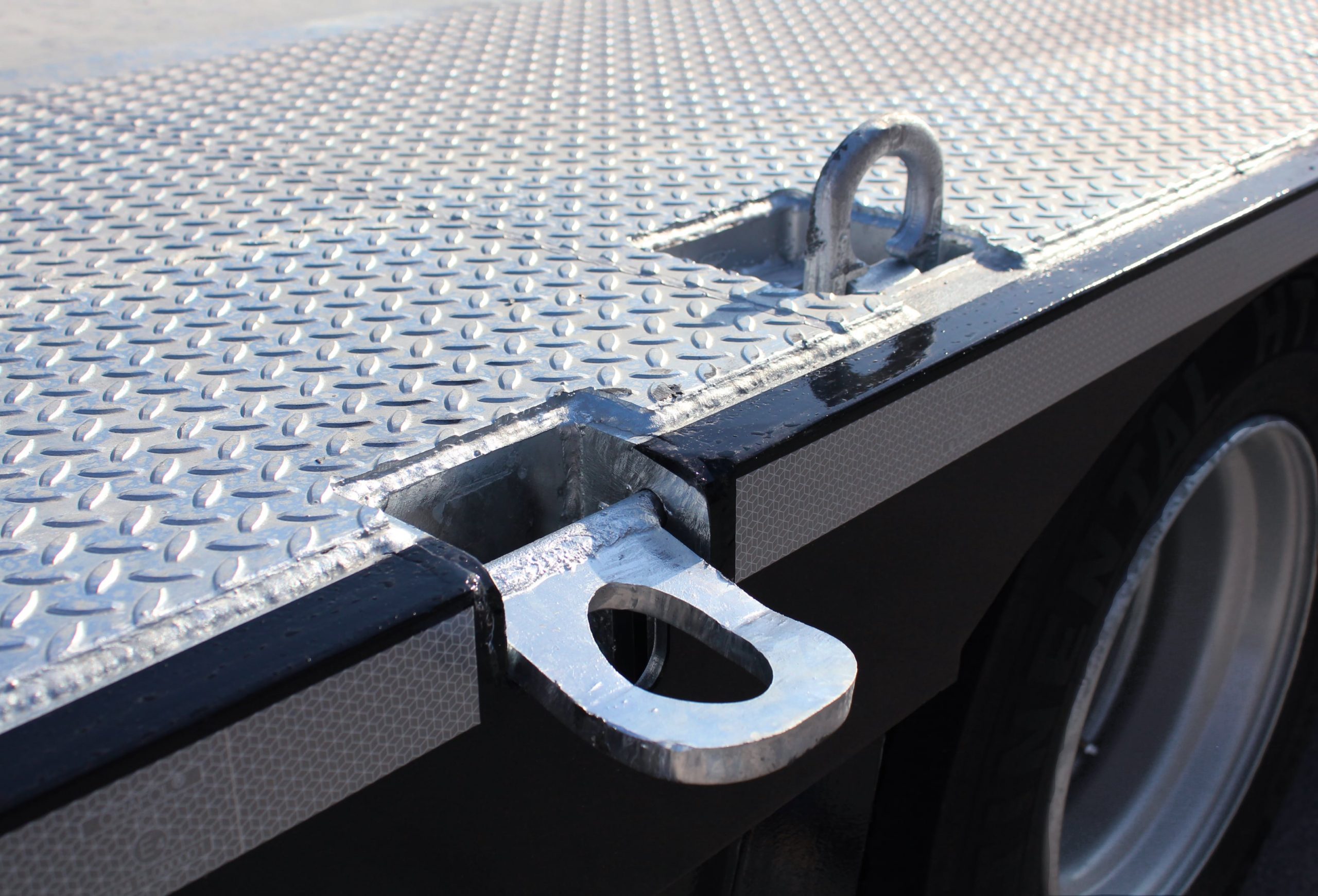

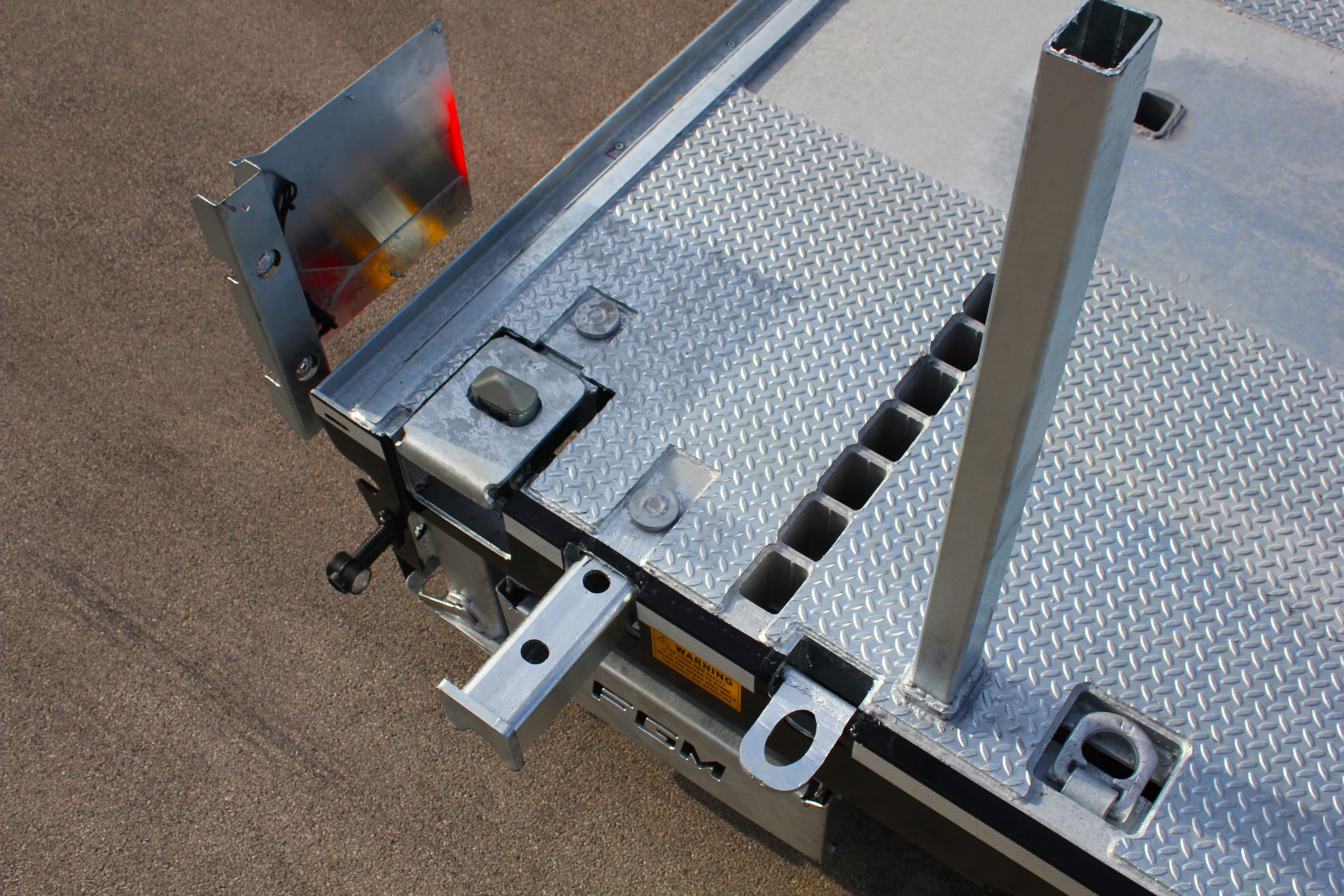

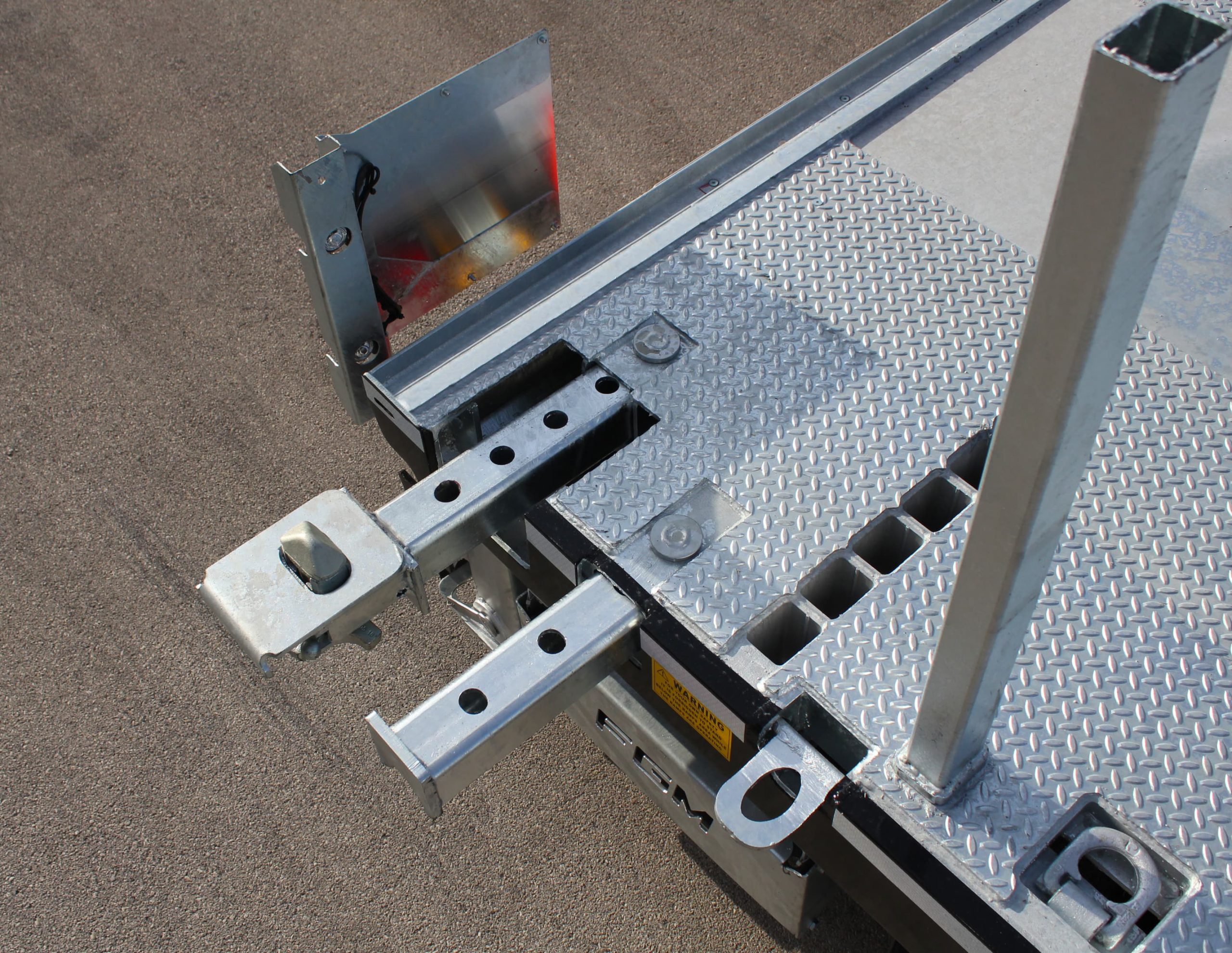

Certified lashing rings
Stainless steel toolbox

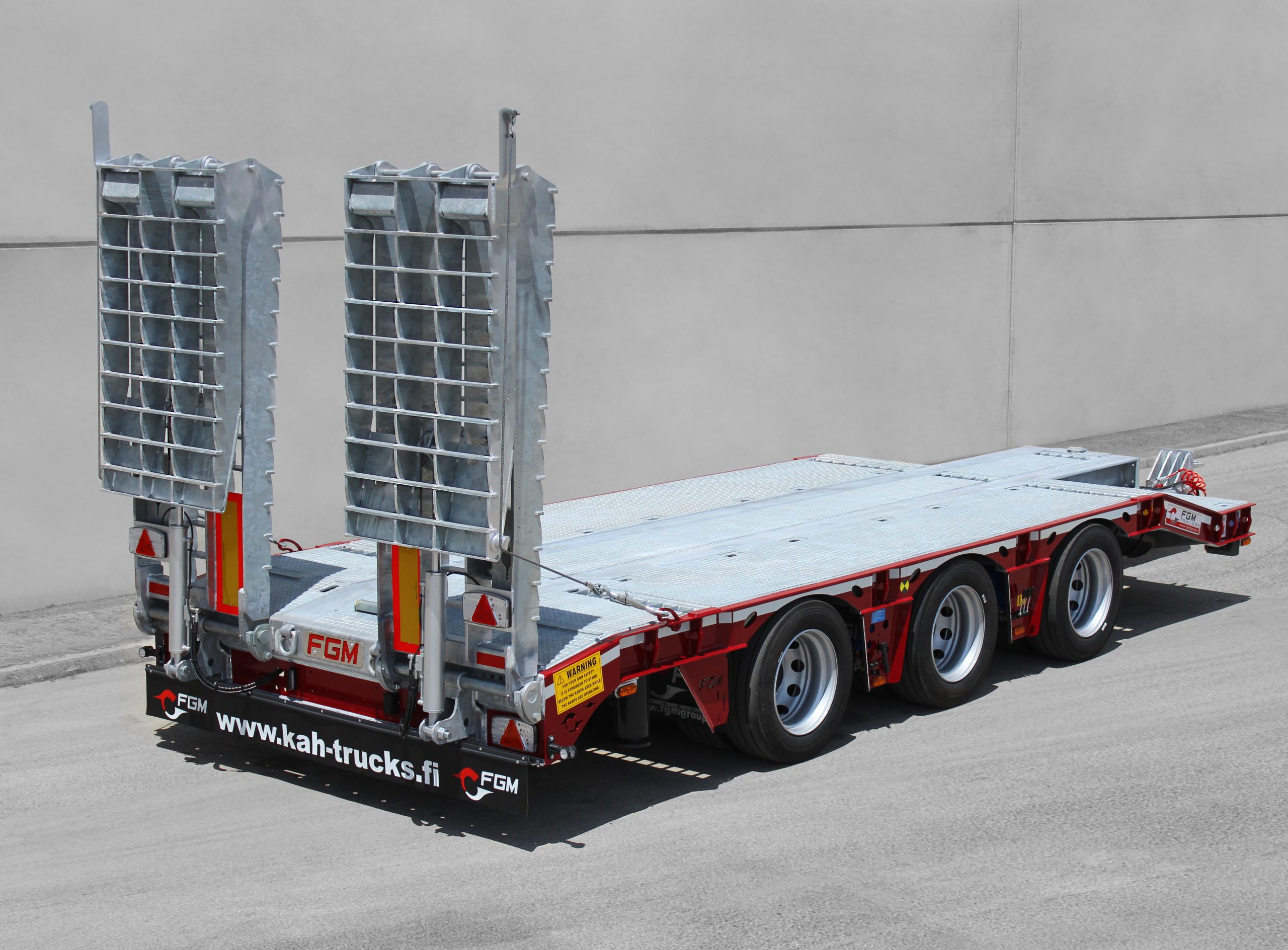

Strenx 700 rear ramps
Jost landing gear
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Aluminum sideboards H 400 mm, Aluminum sideboards H 600 mm, Certified Lashing rings, payload 8.000 Kg, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 6.700 kg, Wheel recess Kit |
|---|---|
| Axles | 11-ton SAF, drum brakes, ROR 12-ton, drum brakes |
| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650 |
| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
